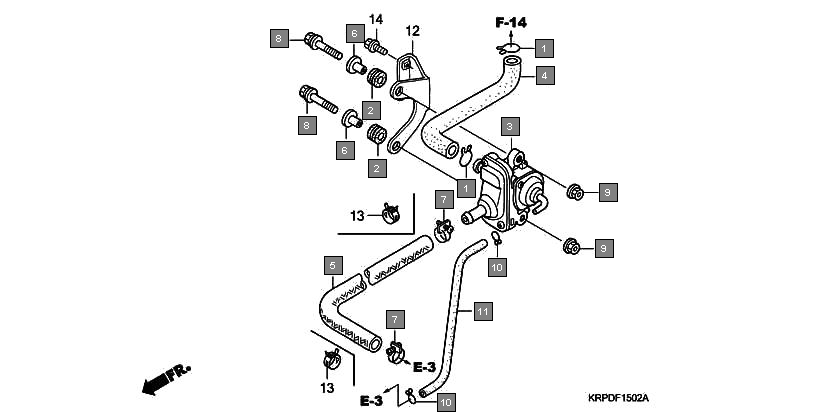

Scooters Dio SCV100F9 Frame Air suction valve
Ref.No. Part No. Description Oty
1 17316611000 CLIP, BREATHER TUBE 2
2 17622GB7900 RUBBER, CUSHION 2
3 18600KPL903 VALVE ASSY., AIR SUCTION 1
4 18651KPL900 TUBE, AIR SUCTION VALVE 1
5 18652KPL900 HOSE, AIR SUCTION VALVE 1
6 90501KC2750 WASHER, REGULATOR SETTING 2
7 91462KM7910 CLIP, TUBE 2
8 934040603008 BOLT-WASHER, 6X30 2
9 9405006000 NUT, FLANGE, 6MM 2
10 9500202070 CLIP, TUBE(B7) 2
11 950053516020 TUBE, 3.5X160(95005-35001-20M) 1
