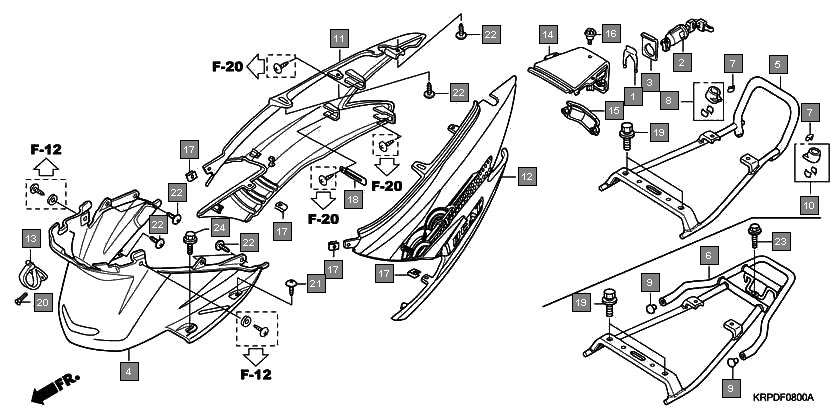

Scooters Dio SCV100F9 Frame Body cover
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KRP911 KEY, SEAT LOCK 1
3 77239KRP981 KEY, SEAT LOCK 1
4 77241KRP900 PLATE, SEAT LOCK 1
5 80151KRP900ZA COVER, CENTER 1
6 81200KRP900 GRIP COMP., RR. 1
7 81200KRP980 CARRIER COMP., RR. 1
8 81221KRP900 CLIP 2
9 81225KRP900 CAP COMP., R. RR. GRIP 1
10 81225KRP980 CAP, BAR END 2
11 81235KRP900 CAP COMP., L. RR. GRIP 1
12 83100KRPS10ZA COVER SET, R. BODY (WL) *TYPE1* 1
13 83100KRPS10ZB COVER SET, R. BODY (WL) *TYPE2* 1
14 83100KRPS10ZC COVER SET, R. BODY (WL) *TYPE3* 1
15 83100KRPS10ZD COVER SET, R. BODY (WL) *TYPE4* 1
16 83100KRPS20ZA COVER SET, R. BODY (WL)*NHA04M* GENY GRAY METALLIC 1
17 83100KRPS20ZB COVER SET, R. BODY (WL)*NH411M* FORCE SILVER METALLIC 1
18 83100KRPS20ZC COVER SET, R. BODY (WL)*PB215C* CANDY TAHITIAN BLUE 1
19 83100KRPS20ZD COVER SET, R. BODY (WL)*R321* SPORTS RED 1
20 83200KRPS10ZA COVER SET, L. BODY (WL) 1
21 83200KRPS10ZB COVER SET, L. BODY (WL) *TYPE2* 1
22 83200KRPS10ZC COVER SET, L. BODY (WL) *TYPE3* 1
23 83200KRPS10ZD COVER SET, L. BODY (WL) *TYPE4* 1
24 83200KRPS20ZA COVER SET, L. BODY (WL) *NHA04M* GENY GRAY METALLIC 1
25 83200KRPS20ZB COVER SET, L. BODY (WL) *NH411M* FORCE SILVER METALLIC 1
26 83200KRPS20ZC COVER SET, L. BODY (WL) *PB215C* CANDY TAHITIAN BLUE 1
27 83200KRPS20ZD COVER SET, L. BODY (WL) *R321* SPORTS RED 1
28 83508KPL900 HOOK, LUGGAGE 1
29 83700KRP730ZB COVER SET, RR. CENTER BODY (WL) *NHA04M* GENY GRAY METALLIC 1
30 83700KRP730ZC COVER SET, RR. CENTER BODY (WL) *NH411M* FORCE SILVER METALLIC 1
31 83700KRP730ZD COVER SET, RR. CENTER BODY (WL) *PB215C* CANDY TAHITIAN BLUE 1
32 83700KRP730ZE COVER SET, RR. CENTER BODY (WL) *R321* SPORTS RED 1
33 83702KRP900ZA COVER, RR. CENTER LOWER *NH411M* FORCE SILVER METALLIC 1
34 83702KRP900ZB COVER, RR. CENTER LOWER *PB215C* CANDY TAHITIAN BLUE 1
35 83702KRP900ZD COVER, RR. CENTER LOWER *NHA04M* GENY GRAY METALLIC 1
36 83702KRP900ZN COVER, RR. CENTER LOWER *R321* SPORTS RED 1
37 90113KRP900 BOLT, SPECIAL HEX., 6X14 1
38 90344KRP900 NUT, CLIP, 5MM 4
39 91405KRP900 CLIP, 2X70 1
40 934040801607 BOLT-WASHER, 8X16 2
41 93600050160G SCREW, FLAT, 5X16 2
42 9390325380 SCREW, TAPPING, 5X16 2
43 9390335220 SCREW, TAPPING, 5X12 12
44 957010602007 BOLT, FLANGE, 6X20 1
45 957010804007 BOLT, FLANGE, 8X40 2
