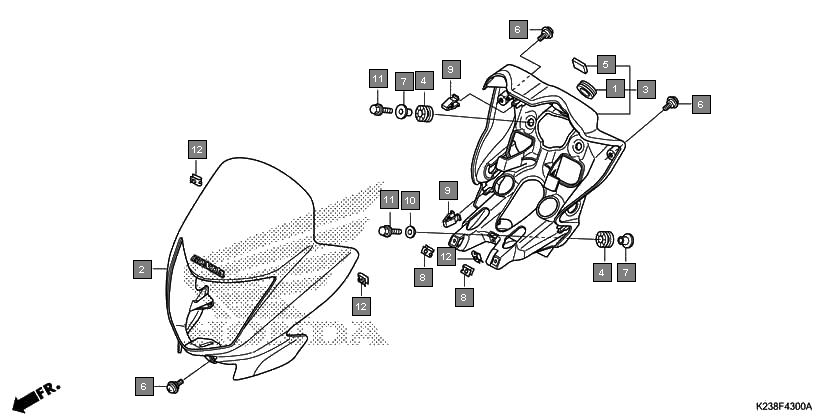

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 37312KT2000 | GROMMET, COMBINATION SWITCH | 1 |
2 | 61300K23900ZJ | VISOR SET, FR.(WL)*TYPE1* | 1 |
3 | 61310K23900 | COVER ASSY., HEADLIGHT RR. | 1 |
4 | 64615KR1860 | RUBBER, LOWER COWL MOUNTING | 4 |
5 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
6 | 90101GE0000 | SCREW, HINGE PATCH | 3 |
7 | 90310KWS900 | COLLAR, FR. COWL | 4 |
8 | 90320GC3000 | NUT, SPRING, 5MM | 2 |
9 | 90666SDAA01 | CLIP, SNAP FITTING(PO)(NATURAL) | 3 |
10 | 9410306800 | WASHER, PLAIN, 6MM | 2 |
11 | 957010602208 | BOLT, FLANGE, 6X22 | 4 |
12 | 957020602208 | BOLT, FLANGE, 6X22 | 4 |
13 | 90320GC3000 | NUT, SPRING, 5MM | 3 |
