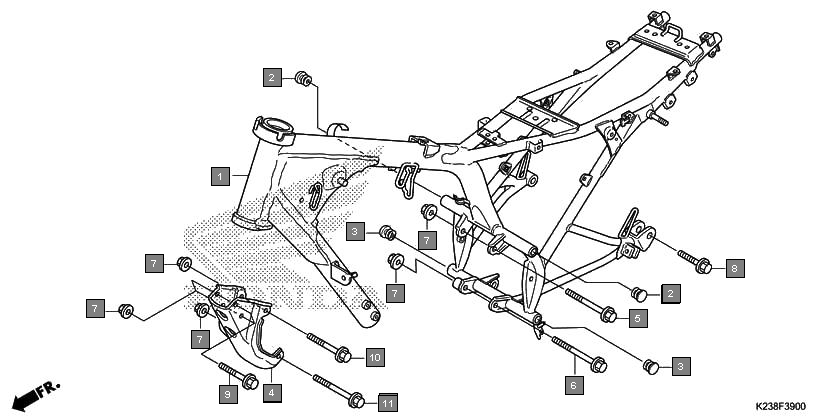

Motorcycles CD 110 Dream CB110C2F Frame Frame body
Ref.No. Part No. Description Oty
1 50100K23900 BODY COMP., FRAME 1
2 50315H06000 CAP, PIPE END 2
3 50315KYY900 CAP, PIPE END 2
4 50351K14900 PLATE, FR. ENGINE HANGER 1
5 90019399010 BOLT, FLANGE, 10X110 1
6 90132K14900 BOLT, FLANGE, 10X135 1
7 9405010000 NUT, FLANGE, 10MM 6
8 957010803500 BOLT, FLANGE, 8X35 1
9 957020803500 BOLT, FLANGE, 8X35 1
10 958011006500 BOLT, FLANGE, 10X65 2
11 958021006500 BOLT, FLANGE, 10X65 2
12 958011008500 BOLT, FLANGE, 10X85 1
13 958021008500 BOLT, FLANGE, 10X85 1
14 958021009500 BOLT, FLANGE, 10X95 1
