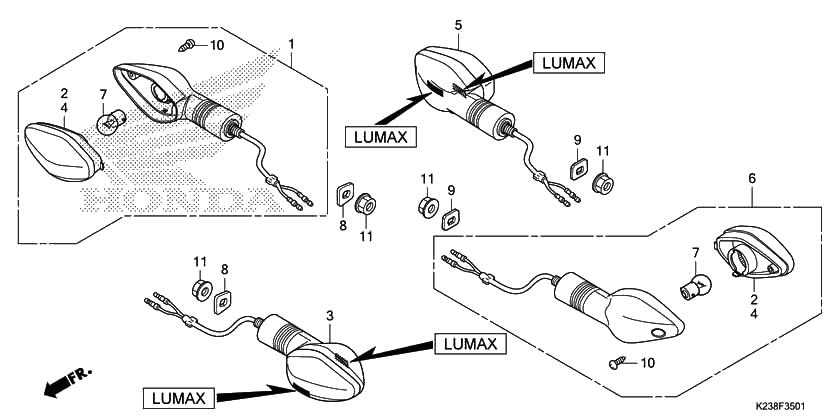

Motorcycles CD 110 Dream CB110C2F Frame Winker(lumax)
Ref.No. Part No. Description Oty
1 33400K23902 WINKER ASSY., R. FR.(12V 10W) 1
2 33403K23902 LENS COMP., R.(R. FR./L. RR.) 2
3 33450K23902 WINKER ASSY., L. FR.(12V 10W) 1
4 33453K23902 LENS COMP., L.(L. FR./R. RR.) 2
5 33600K23902 WINKER ASSY., R. RR.(12V 10W) 1
6 33650K23902 WINKER ASSY., L. RR.(12V 10W) 1
7 34904K23900 BULB, WINKER LIGHT(R10W) 4
8 61315K14900 PLATE, FR. WINKER 2
9 80103KWS900 STAY, RR. WINKER 2
10 9390134380 SCREW, TAPPING, 4X12 4
11 9405010000 NUT, FLANGE, 10MM 4
