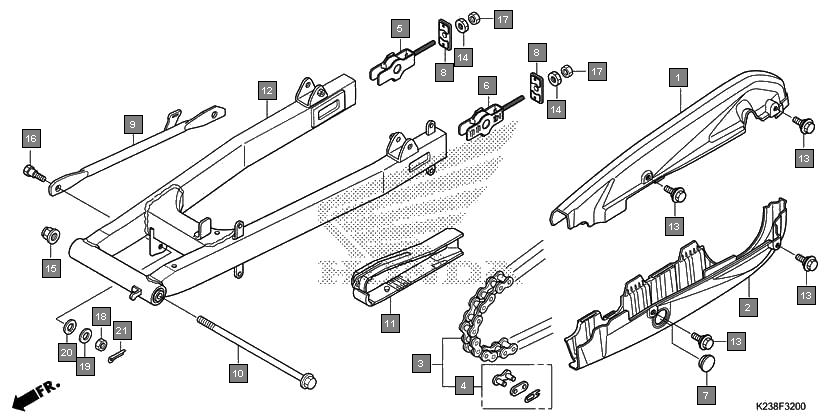

Motorcycles CD 110 Dream CB110C2F Frame Swingarm
Ref.No. Part No. Description Oty
1 40510K23900 CASE, DRIVE CHAIN UPPER 1
2 40520K23900 CASE, DRIVE CHAIN LOWER 1
3 40530K23903 CHAIN, DRIVE (LGB R420BS-114L) 1
4 40530K23901 CHAIN, DRIVE (DID420AD-114RB) 1
5 40530K23905 CHAIN, DRIVE (TIDC420-114L) 1
6 40531KTE912 JOINT, DRIVE CHAIN(LGB) 1
7 40531KST941 JOINT, DRIVE CHAIN(TIDC) 1
8 40531KWB601 JOINT, DRIVE CHAIN(DAIDO) 1
9 40543K14900 ADJUSTER COMP., R. CHAIN 1
10 40544K14900 ADJUSTER COMP., L. CHAIN 1
11 40545K23900 CAP, CHAIN CASE PEEP HOLE 1
12 40546KWF900 CAP, SWINGARM END 2
13 43431K23900 ARM COMP., RR. BRAKE STOPPER 1
14 52101KZAW00 BOLT, SWINGARM PIVOT 1
15 52170K23900 SLIDER, CHAIN 1
16 52200K23900 SWINGARM SUB ASSY., RR. 1
17 90111162000 BOLT, FLANGE, 6MM 4
18 90302KBP900 NUT, SPECIAL, 6MM 2
19 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
20 9281210000 BOLT A, STOPPER ARM 1
21 94001060000S NUT, HEX., 6MM 2
22 94001080000S NUT, HEX., 8MM 1
23 9410108000 WASHER, PLAIN, 8MM 1
24 9411110000 WASHER, SPRING, 10MM 1
25 9420120150 PIN, SPLIT, 2.0X15 1
