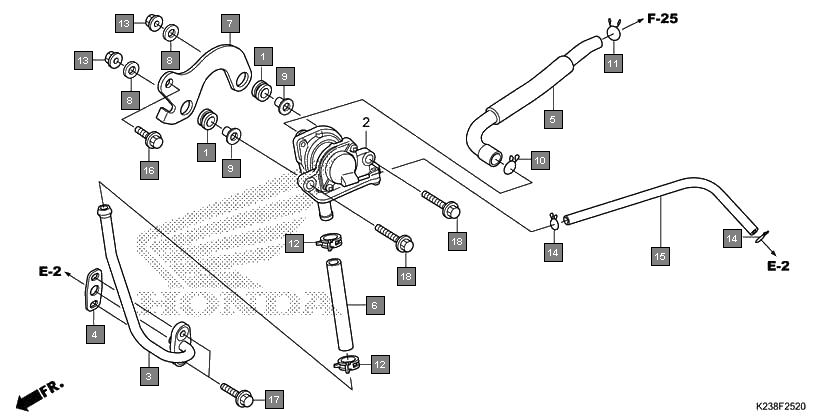

Motorcycles CD 110 Dream CB110C2F Frame Air suction valve
Ref.No. Part No. Description Oty
1 17622GB7900 RUBBER, CUSHION 2
2 18640K14900 PIPE COMP., AIR FEED 1
3 18645KPHC00 GASKET, AIR FEED PIPE 1
4 18651K14900 TUBE A, AIR SUCTION VALVE 1
5 18652KZAW00 TUBE B, AIR SUCTION VALVE 1
6 50535KZAW00 BRACKET, AIR SUCTION VALVE 1
7 90450ZA0000 WASHER, PLAIN, 6X16 2
8 90501KC2750 WASHER, REGULATOR SETTING 2
9 90651K14900 CLIP, TUBE(B15) 1
10 90651MK3780 CLIP, TUBE(B12.5) 1
11 90678MR1690 CLIP, HOSE 2
12 9405006000 NUT, FLANGE, 6MM 2
13 9500202070 CLIP, TUBE(B7) 2
14 950053525020 TUBE, 3.5X250(95005-35001-20M) 1
15 957010601208 BOLT, FLANGE, 6X12 1
16 957020601208 BOLT, FLANGE, 6X12 1
17 957010602000 BOLT, FLANGE, 6X20 2
18 957020602000 BOLT, FLANGE, 6X20 2
19 960010602800 BOLT, FLANGE, 6X28 2
