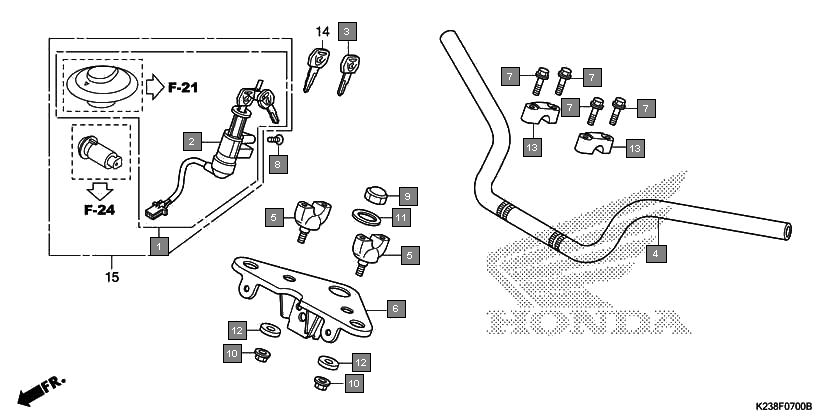

Motorcycles CD 110 Dream CB110C2F Frame Handle pipe/top bridge
Ref.No. Part No. Description Oty
1 35010K23900 KEY SET(JAY USHIN) 1
2 35010K23910 KEY SET(MINDA) 1
3 35100K14901 SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) 1
4 35100K14931 SWITCH ASSY., COMBINATION & LOCK(MINDA) 1
5 35121KWS900 KEY, BLANK(JAY USHIN) 1
6 53100K14900ZB PIPE, STEERING HANDLE *NH105* MAT BLACK 1
7 53130KTE910 HOLDER, HANDLE UNDER 2
8 53230K23900ZA BRIDGE COMP., FORK TOP *NH105* MAT BLACK 1
9 90117383000 BOLT, FLANGE, 6X28 4
10 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
11 90304KSP900 NUT, STEERING STEM 1
12 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
13 90503KSP900 WASHER, STEERING STEM 1
14 90521427770 WASHER, 10.3MM 2
15 9501421101 HOLDER A1, HANDLE PIPE UPPER 2
16 35121K14930 KEY, BLANK(MINDA) 1
