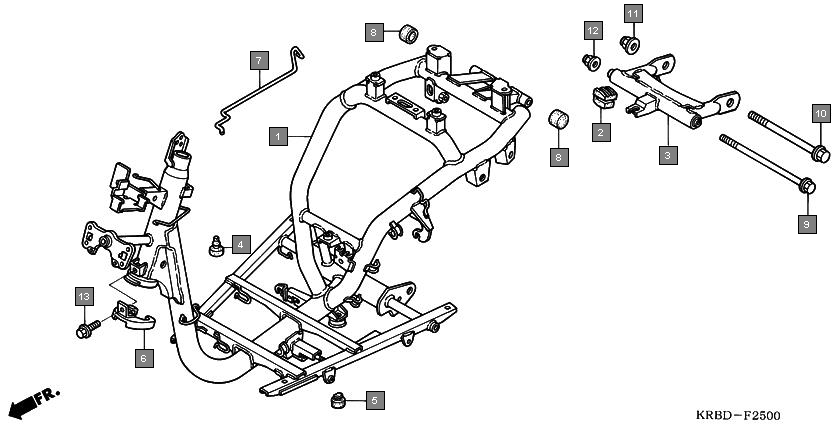

Scooters Eterno SC1505 Frame Frame body
Ref.No. Part No. Description Oty
1 50100KRB910 BODY COMP., FRAME 1
2 50352GW0730 RUBBER, LINK STOPPER 1
3 50355KRB901 LINK SUB ASSY., ENGINE HANGER 1
4 50501KPL900 STOPPER, RUBBER 1
5 50505KRB901 RUBBER, STAND STOPPER 1
6 81256KRB900 ROD, BODY OPENER 1
7 83561KPL840 CUSHION, BODY COVER 2
8 90105KRB900 BOLT, FLANGE, 12X260 1
9 90122KRB900 BOLT, FLANGE, 14X210 1
10 90305KCS920 NUT, SPECIAL, 14MM 1
11 90306KPL900 NUT, SPECIAL FLANGE, 12MM 1
