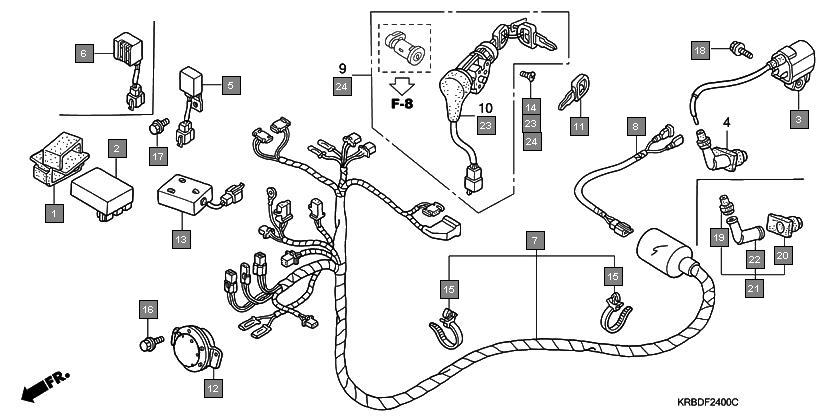

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30401KRB900 | CUSHION, C.D.I. UNIT (INEL) | 1 |
2 | 30401KRB911 | CUSHION, C.D.I. UNIT (DENSO INDIA) | 1 |
3 | 30410KRB902 | C.D.I. UNIT (INEL) | 1 |
4 | 30410KRB911 | C.D.I. UNIT (DENSO INDIA) | 1 |
5 | 30510KRB901 | COIL COMP., IGNITION (INEL) | 1 |
6 | 30510KRB912 | COIL COMP., IGNITION (ANU) | 1 |
7 | 31400KRB901 | REGULATOR COMP. (STAR ENGINEERS) | 1 |
8 | 31400KRB902 | REGULATOR COMP. (INEL) | 1 |
9 | 32100KRB890 | HARNESS, WIRE (DELPHI AUTOMOTIVE) | 1 |
10 | 32100KRB920 | HARNESS, WIRE (MOTHERSON SUMI) | 1 |
11 | 32105KRB890 | SUB CORD, IGNITION COIL | 1 |
12 | 35121KPL841 | KEY, BLANK | 1 |
13 | 38100KRB902 | HORN ASSY., A.C. | 1 |
14 | 38301KRB901 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 |
15 | 90164KEE630 | SCREW, FLAT, 6X12 | 2 |
16 | 90672KPL901 | CLIP, BODY | 2 |
17 | 957010601207 | BOLT, FLANGE, 6X12 | 2 |
18 | 957010601608 | BOLT, FLANGE, 6X16 | 1 |
19 | 957010602508 | BOLT, FLANGE, 6X25 | 1 |
20 | 30604KRB911 | CAP, CORD WATER PROOF | 1 |
21 | 30605KRB911 | SEAL, HIGH TENSION TERMINAL | 1 |
22 | 30700KRB911 | CAP ASSY., NOISE SUPPRESSOR | 1 |
23 | 30701KRB911 | BODY COMP., HIGH TENSION TERMINAL | 1 |
24 | 35012KRB911 | SWITCH ASSY. SET, COMBINATION & LOCK | 1 |
25 | 35014KRB911 | KEY & SCREW SET | 1 |
