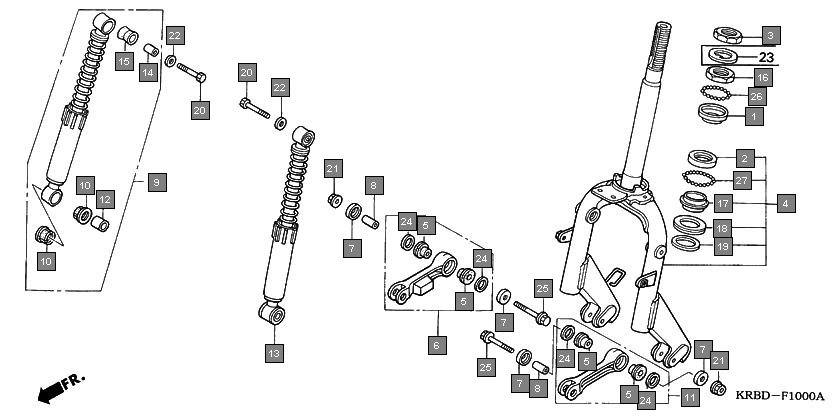

Scooters Eterno SC1505 Frame Steering stem/front fork
Ref.No. Part No. Description Oty
1 50301KEM900 RACE, STEERING UPPER BALL 1
2 50302268010 RACE, STEERING BOTTOM BALL 1
3 50306KPL900 NUT, STEERING STEM LOCK 1
4 51110KRB910 FORK SET, FR. 1
5 51314KPL900 BUSH, PIVOT ARM 4
6 51315KRB900 ARM SET, R. PIVOT 1
7 51316KPL900 CAP, FR. FORK DISTANCE COLLAR 4
8 51334KPL900 COLLAR, ARM PIVOT 2
9 51400KRP982 CUSHION ASSY., R. FR.(SHOWA) 1
10 51400KPL905 CUSHION ASSY., R. FR.(GABRIEL) 1
11 51413GC8003 BUSH, FR. CUSHION UNDER(SHOWA)(KWP) 4
12 51413KPL902 BUSH, FR. CUSHION UNDER(GABRIEL) 4
13 51415KRB900 ARM SET, L. PIVOT 1
14 51486GC8003 COLLAR, RUBBER BUSH(SHOWA)(KWP) 2
15 51486KPL903 COLLAR, RUBBER BUSH(GABRIEL)(GIL) 2
16 51500KRP982 CUSHION ASSY., L. FR.(SHOWA) 1
17 51500KPL905 CUSHION ASSY., L. FR.(GABRIEL) 1
18 51486KRP981 COLLAR, CUSHION RUBBER BUSH(SHOWA)(KWP) 2
19 52486KPL903 COLLAR, RUBBER BUSH(GABRIEL)(GIL) 2
20 52489331003 RUBBER A, JOINT(SHOWA)(KWP) 2
21 52489KPL902 BUSH, RUBBER(GABRIEL)(GIL) 2
22 53211KEM900 RACE, STEERING TOP CONE 1
23 53212250010 RACE, STEERING BOTTOM CONE 1
24 53214250000 DUST SEAL, STEERING HEAD 1
25 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
26 90121KPL900 BOLT, HEX., 8X32 2
27 90309KPL900 NUT, SPECIAL FLANGE, 8MM 2
28 90443KPL900 WASHER, SPECIAL, 8MM 2
29 91351KPL900 O-RING, 22.1X1.9 4
30 958010805508 BOLT, FLANGE, 8X55 2
31 9621105000 BALL, STEEL, #5(5/32) 26
32 9621108000 BALL, STEEL, #8(1/4) 19
