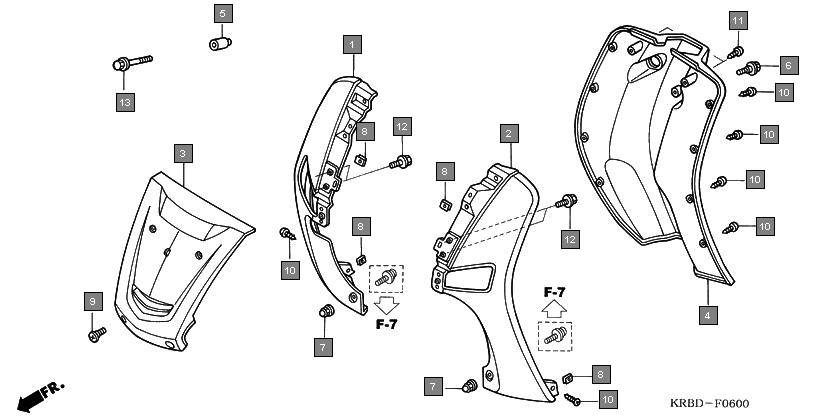

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 04644KRB900ZZ | COVER COMP., R. FR. | 1 |
2 | 04645KRB900ZZ | COVER COMP., L. FR. | 1 |
3 | 64200KRB900ZA | COVER, FR. CENTER (WOL) *BG126M* FAB GREEN METALLIC | 1 |
4 | 64200KRB900ZD | COVER, FR. CENTER (WOL) *NH1* BLACK | 1 |
5 | 64200KRB900ZE | COVER, FR. CENTER (WOL) *Y179M* SILVERY BEIGE METALLIC | 1 |
6 | 64200KRB900ZF | COVER, FR. CENTER (WOL) *NHA58M* PLASMA SILVER METALLIC | 1 |
7 | 64200KRB900ZG | COVER, FR. CENTER (WOL) *YR258M* ROYAL GOLD METALLIC | 1 |
8 | 81131KRB900ZA | COVER, INNER *NH1* BLACK | 1 |
9 | 84702KRB900 | COLLAR, FR. NUMBER PLATE | 2 |
10 | 90111KPL900 | BOLT, INNER COVER | 1 |
11 | 90203KEJ900 | NUT, FLANGE CAP, 5MM | 2 |
12 | 90344KRB900 | NUT, CLIP, 5MM | 12 |
13 | 90381GT8000 | SCREW, SPECIAL, 6X11 | 2 |
14 | 9390325380 | SCREW, TAPPING, 5X16 | 10 |
15 | 9390335310 | SCREW, TAPPING, 5X16 | 2 |
16 | 957010601208 | BOLT, FLANGE, 6X12 | 4 |
17 | 957010605000 | BOLT, FLANGE, 6X50 | 2 |
