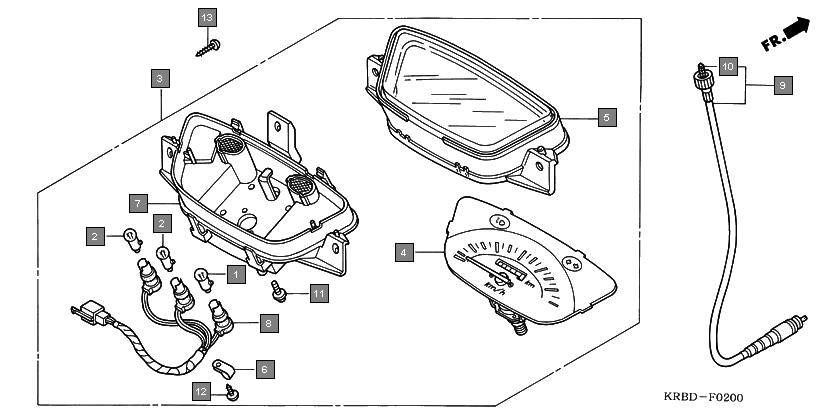

Scooters Eterno SC1505 Frame Meter
Ref.No. Part No. Description Oty
1 34908KPL901 BULB(12V/3.0W) 1
2 34909KPL901 BULB(12V/1.7W) 2
3 37200KRB901 SPEEDOMETER ASSY. 1
4 37210KRB901 SPEEDOMETER COMP. 1
5 37211KRB901 LENS 1
6 37215KAF008 CLAMP 1
7 37220KRB901 CASE ASSY. 1
8 37224KRB901 SOCKET COMP. 1
9 44830KPL900 CABLE COMP., SPEEDOMETER 1
10 44831KPL900 CABLE, INNER 1
11 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
12 9390324420 SCREW, TAPPING, 4X16 1
13 9390325320 SCREW, TAPPING, 5X16 3
