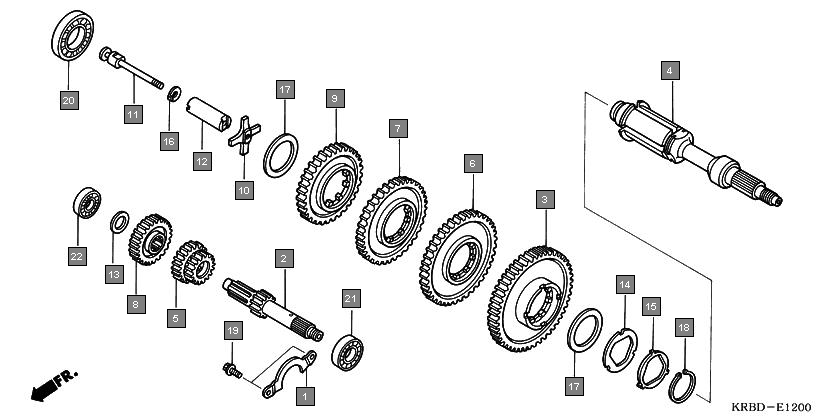

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11214KRB900 | PLATE, BEARING HOLDER | 1 |
2 | 23211KRB900 | MAINSHAFT (11T) | 1 |
3 | 23421KRB900 | GEAR, COUNTERSHAFT LOW (60T) | 1 |
4 | 23430KRB910 | SHAFT, FINAL | 1 |
5 | 23431KRB900 | GEAR, MAINSHAFT SECOND & THIRD (16T/20T) | 1 |
6 | 23441KRB900 | GEAR, COUNTERSHAFT SECOND (55T) | 1 |
7 | 23461KRB900 | GEAR, COUNTERSHAFT THIRD (51T) | 1 |
8 | 23471KRB900 | GEAR, MAINSHAFT FOURTH (25T) | 1 |
9 | 23481KRB900 | GEAR, COUNTERSHAFT FOURTH (47T) | 1 |
10 | 24201KRB900 | PAWL, GEAR SHIFT | 1 |
11 | 24205KRB900 | SHAFT, GEAR SHIFT PAWL | 1 |
12 | 24206KRB900 | SHAFT, GEAR SHIFT OUTER | 1 |
13 | 90451107000 | WASHER, THRUST, 15MM | 1 |
14 | 90641KRB900 | WASHER A, LOCK, 42MM | 1 |
15 | 90642KRB900 | WASHER B, LOCK, 42MM | 1 |
16 | 90643KRB900 | WASHER, LOCK, 7MM | 1 |
17 | 90646KRB900 | WASHER, THRUST, 42MM | 2 |
18 | 9451042000 | CIRCLIP, EXTERNAL, 42MM | 1 |
19 | 960010601400 | BOLT, FLANGE, 6X14 | 2 |
20 | 961006006000 | BEARING, RADIAL BALL, 6006 | 1 |
21 | 961006203000 | BEARING, RADIAL BALL, 6203 | 1 |
22 | 961406202000 | BEARING, RADIAL BALL, 6202U | 1 |
