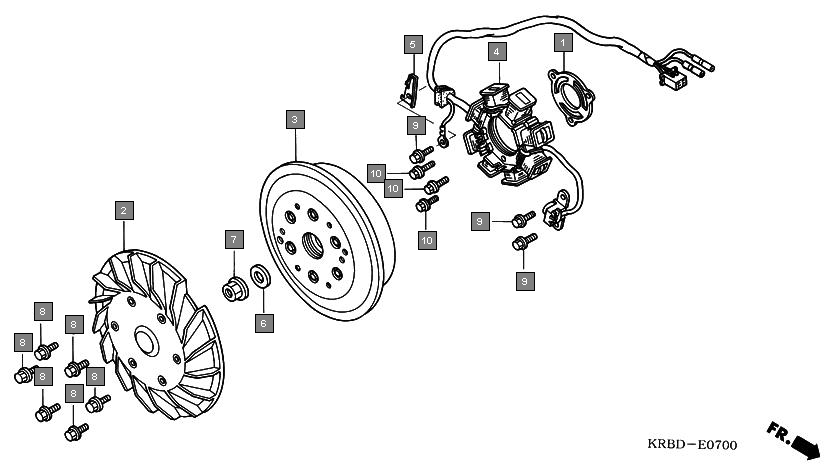

Scooters Eterno SC1505 Engine Generator
Ref.No. Part No. Description Oty
1 11103KRB900 PLATE, OIL SEAL 1
2 19510KRB900 FAN COMP., COOLING 1
3 31110KRB911 FLYWHEEL COMP. 1
4 31120KRB901 STATOR COMP. 1
5 32976KRB901 CLAMPER, A.C. GENERATOR CORD 1
6 90439SB2010 WASHER, SPECIAL, 24X12X2.3 1
7 9405012000 NUT, FLANGE, 12MM 1
8 957010601207 BOLT, FLANGE, 6X12 6
9 960010601200 BOLT, FLANGE, 6X12 3
10 960010601800 BOLT, FLANGE, 6X18 3
