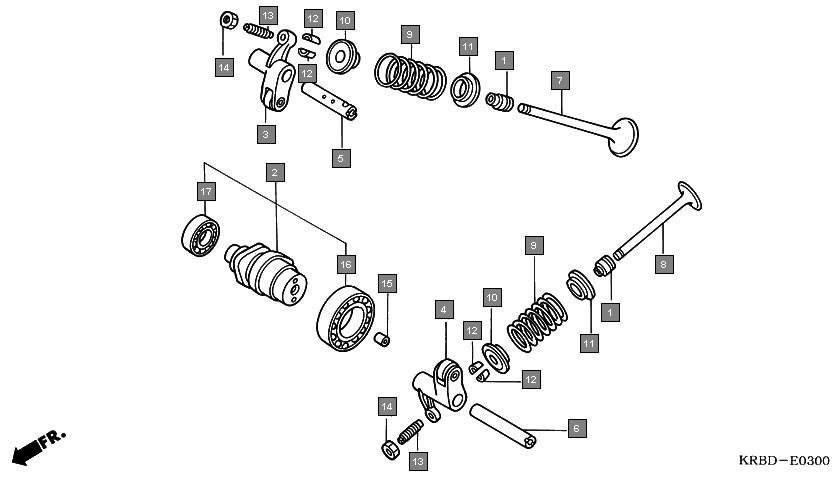

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209KPL901 | SEAL, VALVE STEM | 2 |
2 | 14100KRB900 | CAMSHAFT COMP. | 1 |
3 | 14430KRB900 | ARM COMP., IN. VALVE ROCKER | 1 |
4 | 14440KRB900 | ARM COMP., EX. VALVE ROCKER | 1 |
5 | 14451KRB900 | SHAFT, IN. ROCKER ARM | 1 |
6 | 14452KRB900 | SHAFT, EX. ROCKER ARM | 1 |
7 | 14711KRB900 | VALVE, IN. | 1 |
8 | 14721KRB900 | VALVE, EX. | 1 |
9 | 14751KRB900 | SPRING, VALVE | 2 |
10 | 14771KN6960 | RETAINER, VALVE SPRING | 2 |
11 | 14775KRB900 | SEAT, VALVE SPRING | 2 |
12 | 14781MA6000 | COTTER, VALVE | 4 |
13 | 90012333000 | SCREW, TAPPET ADJUSTING | 2 |
14 | 90206001000 | NUT, TAPPET ADJUSTING | 2 |
15 | 90702KFM900 | DOWEL PIN, 8X12 | 1 |
16 | 91007GB6911 | BEARING, RADIAL BALL, 6905 | 1 |
17 | 961006001000 | BEARING, RADIAL BALL, 6001 | 1 |
