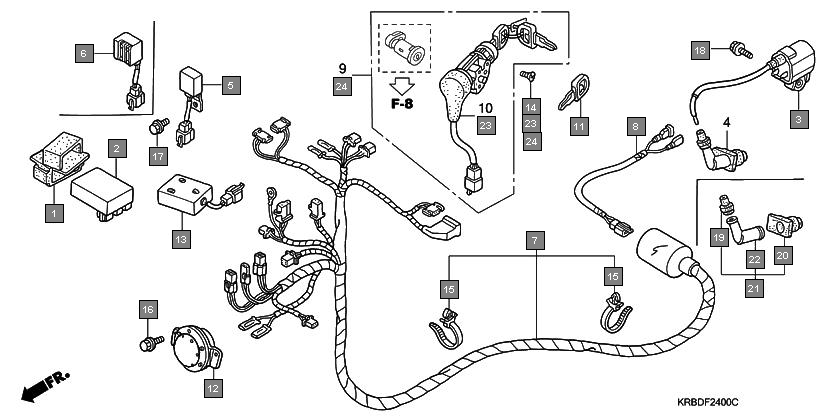

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30401KRB900 | CUSHION, C.D.I. UNIT (INEL) | 1 |
2 | 30401KRB901 | CUSHION, C.D.I. UNIT (DENSO INDIA) | 1 |
3 | 30410KRB901 | C.D.I. UNIT (DENSO INDIA) | 1 |
4 | 30410KRB902 | C.D.I. UNIT (INEL) | 1 |
5 | 30510KRB901 | COIL COMP., IGNITION (INEL) | 1 |
6 | 30700KRB900 | CAP ASSY., NOISE SUPPRESSOR | 1 |
7 | 31400KRB901 | REGULATOR COMP. (STAR ENGINEERS) | 1 |
8 | 31400KRB902 | REGULATOR COMP. (INEL) | 1 |
9 | 32100KRB890 | HARNESS, WIRE (DELPHI AUTOMOTIVE) | 1 |
10 | 32105KRB890 | SUB CORD, IGNITION COIL | 1 |
11 | 35010KRB900 | KEY SET | 1 |
12 | 35100KRB901 | SWITCH ASSY., COMBINATION & LOCK | 1 |
13 | 35121KRB900 | KEY, BLANK (NO.1) (KEY NO. AXX / BXX) | 1 |
14 | 35122KRB900 | KEY, BLANK (NO.2)(KEY NO. CXX / DXX) | 1 |
15 | 38100KRB902 | HORN ASSY., A.C. | 1 |
16 | 38301KRB901 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 |
17 | 90164KPL900 | SCREW, U-LOCK FLAT, 6X12 | 2 |
18 | 90672KPL901 | CLIP, BODY | 2 |
19 | 957010601207 | BOLT, FLANGE, 6X12 | 2 |
20 | 957010601608 | BOLT, FLANGE, 6X16 | 1 |
21 | 957010602508 | BOLT, FLANGE, 6X25 | 1 |
