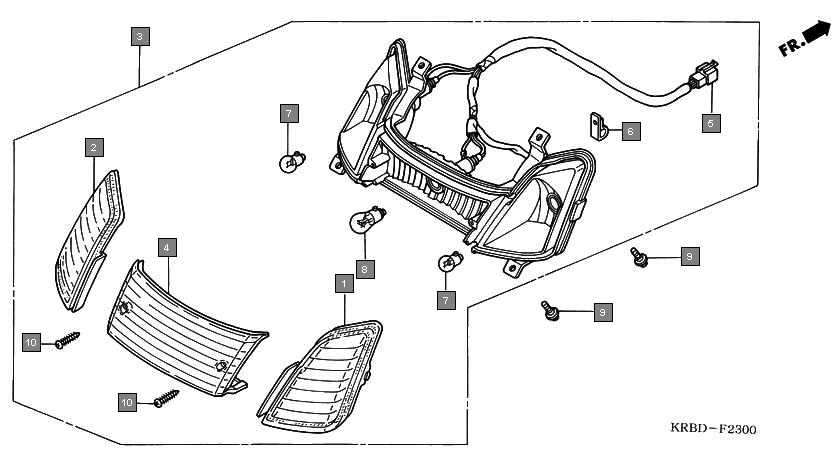

Scooters Eterno SC1504 Frame Taillight
Ref.No. Part No. Description Oty
1 33602KRB901 LENS, R. RR. WINKER 1
2 33652KRB901 LENS, L. RR. WINKER 1
3 33700KRB901 LIGHT ASSY., RR. COMBINATION 1
4 33701KRB901 LENS COMP., TAILLIGHT 1
5 33704KRB901 BASE COMP., RR. 1
6 33711KAB003 CLAMP, PLATE 1
7 34904KRB900 BULB, WINKER (12V 10W) 2
8 34906KRB900 BULB, TAILLIGHT(12V 21/5W) 1
9 91509GE2760 SCREW, PAN, 5X11.5 4
10 9390134580 SCREW, TAPPING, 4X20 2
