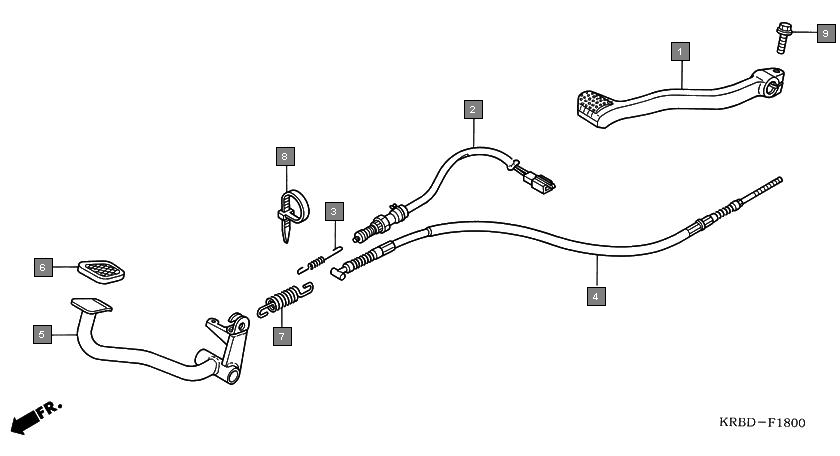

Scooters Eterno SC1504 Frame Kick starter arm/brake pedal
Ref.No. Part No. Description Oty
1 28301KRB902 ARM, KICK STARTER 1
2 35350KRB901 SWITCH ASSY., RR. STOP 1
3 35357KJ9000 SPRING, STOP SWITCH 1
4 43450KRB900 CABLE COMP., RR. BRAKE 1
5 46501KRB900 PEDAL COMP., RR. BRAKE 1
6 46502KRB900 COVER, BRAKE PEDAL 1
7 46514KZ9000 SPRING, BRAKE PEDAL 1
8 90657KRP901 CABLE, TIE(LONG) 1
9 957010803007 BOLT, FLANGE, 8X30 1
