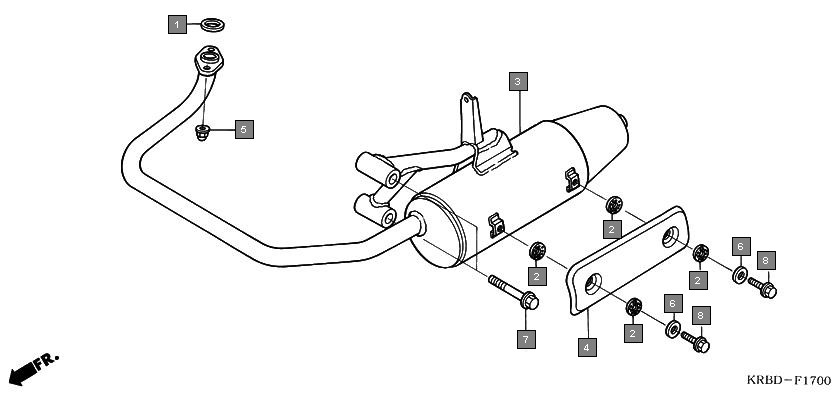

Scooters Eterno SC1504 Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291GA7000 GASKET, EX. PIPE 1
2 18292GW3980 PACKING, PROTECTOR 4
3 18300KRB900 MUFFLER COMP., EX. 1
4 18318KRB900 PROTECTOR, MUFFLER 1
5 90305KFN850 NUT, HEX. CAP, 7MM 2
6 9410106700 WASHER, PLAIN, 6MM 2
7 958011007008 BOLT, FLANGE, 10X70 2
8 960010601207 BOLT, FLANGE, 6X12 2
