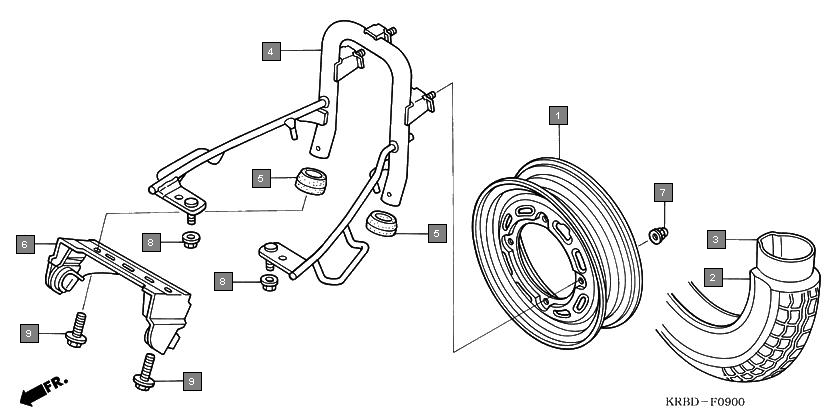

Scooters Eterno SC1504 Frame Rear grip
Ref.No. Part No. Description Oty
1 42702KRB900 RIM COMP., WHEEL 1
2 42711KRB901 TIRE (MRF) (3.50-10 4PR) 1
3 42711KRB903 TIRE (CEAT) (3.50-10 4PR) 1
4 42712KRB901 TUBE, TIRE (MRF) (3.50-10) 1
5 42712KRB902 TUBE, TIRE (CEAT) (3.50-10) 1
6 81200KRB901 GRIP COMP., RR. 1
7 81208KPL900 RUBBER, RR. GRIP 2
8 83560KRB900 HINGE, BODY COVER 1
9 90301KBW940 NUT, CAP, 8MM 3
10 9405006000 NUT, FLANGE, 6MM 2
11 957011002000 BOLT, FLANGE, 10X20 2
