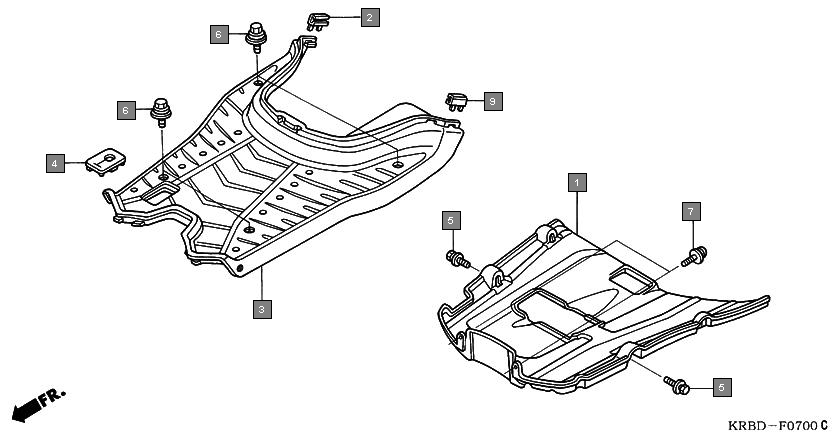

Scooters Eterno SC1504 Frame Floor panel
Ref.No. Part No. Description Oty
1 50621KRB901 COVER, UNDER 1
2 50624KRB901 RUBBER R, PROTECTOR 1
3 64310KRB900ZA PANEL, FLOOR *NH1* BLACK 1
4 64315KRB900 COVER, RR. BRAKE PEDAL 1
5 934040601208 BOLT-WASHER, 6X12 4
6 90001KRB900 BOLT-WASHER, 6X20 4
7 938940501208 SCREW-WASHER, 5X12 2
8 50634KRB900 RUBBER L, PROTECTOR 1
