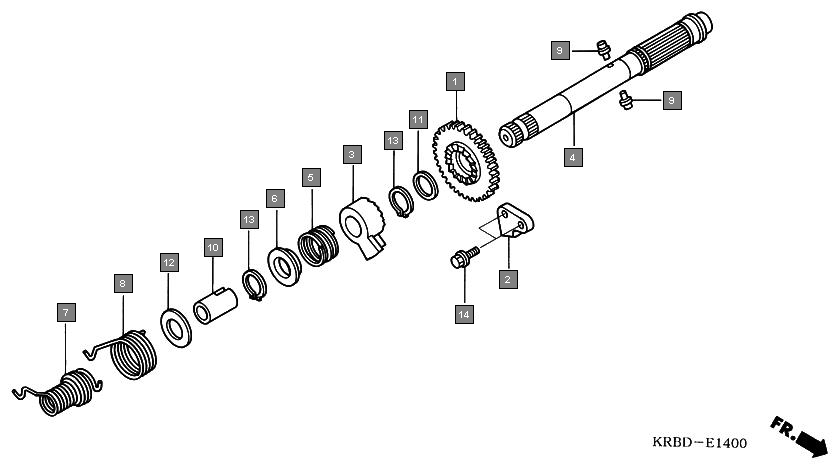

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 28211KRB900 | PINION, KICK STARTER (34T) | 1 |
| 2 | 28215KRB900 | STOPPER, KICK STARTER | 1 |
| 3 | 28221KRB900 | RATCHET, STARTER DRIVE | 1 |
| 4 | 28251KRB900 | SPINDLE, KICK STARTER | 1 |
| 5 | 28253KRB900 | SPRING, KICK STARTER RATCHET | 1 |
| 6 | 28254198740 | RETAINER, RATCHET SPRING | 1 |
| 7 | 28261KRB901 | SPRING A, KICK STARTER | 1 |
| 8 | 28262KRB901 | SPRING B, KICK STARTER | 1 |
| 9 | 28282KRB900 | PIN, SPECIAL, 4.5MM | 2 |
| 10 | 28283KRB900 | COLLAR, SPRING | 1 |
| 11 | 90453107000 | WASHER A, THRUST, 20MM | 1 |
| 12 | 90501444000 | WASHER, 16.8X24 | 1 |
| 13 | 9451020000 | CIRCLIP, EXTERNAL, 20MM | 2 |
| 14 | 957010602000 | BOLT, FLANGE, 6X20 | 2 |
