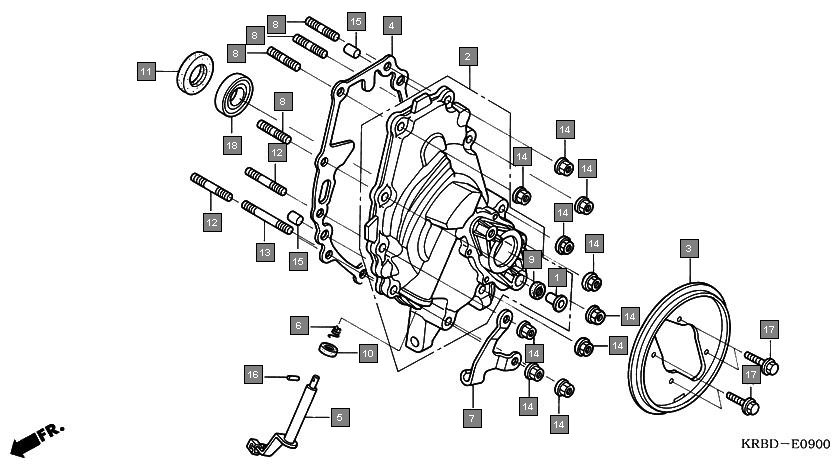

Scooters Eterno SC1504 Engine Left crankcase
Ref.No. Part No. Description Oty
1 11204KS4300 SLEEVE, RR. BRAKE CAM 1
2 11340KRB900 COVER COMP., L. CRANKCASE 1
3 11350KRB900 PLATE COMP., BRAKE PANEL 1
4 11395KRB900 GASKET, L. COVER 1
5 22810KRB900 LEVER COMP., CLUTCH 1
6 22815KRB900 SPRING, CLUTCH LEVER 1
7 22821KRB900 RECEIVER, CLUTCH CABLE 1
8 90003KRB900 BOLT, STUD 2, 8X19 4
9 91203KPL901 OIL SEAL, 14X20X3.2 1
10 91206KV3003 OIL SEAL, 12X19X5 (ARAI) 1
11 91255KRB900 OIL SEAL, 34X52X7 1
12 92900080350B BOLT, STUD, 8X35 2
13 92900080600B BOLT, STUD, 8X60 4
14 9405008000 NUT, FLANGE, 8MM 10
15 9430310160 DOWEL PIN, 10X16 2
16 9430520082 PIN, SPRING, 2X8 1
17 957010601400 BOLT, FLANGE, 6X14 4
18 961506205310 BEARING, RADIAL BALL, 6205UU 1
