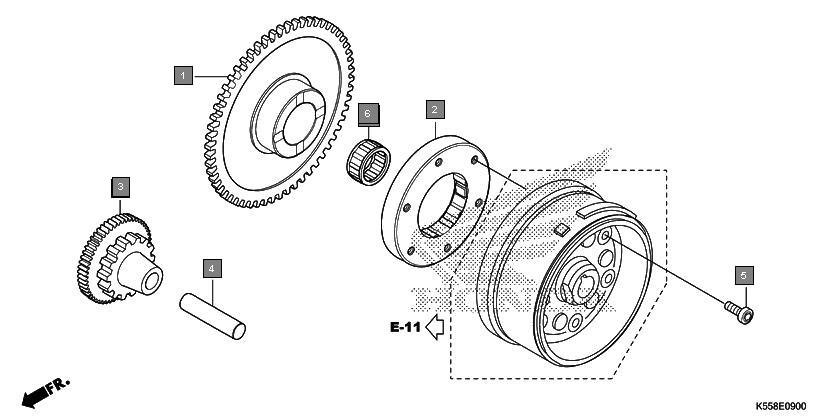

Motorcycles Livo CBF110G Engine Starting clutch
Ref.No. Part No. Description Oty
1 28111KZAW00 GEAR, STARTER DRIVEN(55T) 1
2 28120KPH701 CLUTCH ASSY., ONE WAY(EXEDY) 1
3 28131KWS910 GEAR, STARTER REDUCTION (55T/14T) 1
4 28132KWS900 SHAFT, REDUCTION GEAR 1
5 90085KSP901 BOLT, SOCKET, 6MM 6
6 91011KWS901 BEARING, NEEDLE, 21X27X18 1
7 28131K63D40 GEAR, STARTER REDUCTION (55T/14T) 1
8 91011K63D41 BEARING, NEEDLE, 21X27X18(NRB) 1
9 91011KYY901 BEARING, NEEDLE, 21X27X18(NRB) 1
