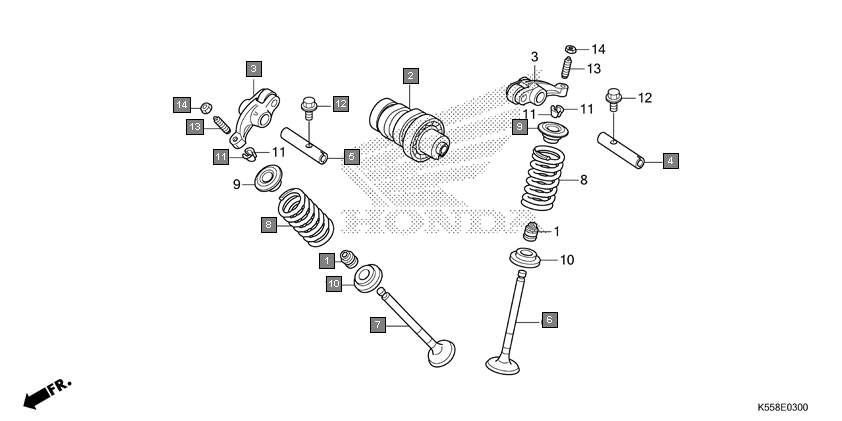

Motorcycles Livo CBF110G Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 12209KWPD01 SEAL, VALVE STEM(SKF) 2
3 14100K23900 CAMSHAFT COMP. 1
4 14430KWP900 ARM COMP., IN. VALVE ROCKER 2
5 14451KYY900 SHAFT, IN. ROCKER ARM 1
6 14452KYY900 SHAFT, EX. ROCKER ARM 1
7 14711KWB600 VALVE, IN. 1
8 14721KVY900 VALVE, EX. 1
9 14751KWB600 SPRING, VALVE(NIPPON HATSUJO) 2
10 14771GB4680 RETAINER, VALVE SPRING 2
11 14775KWP900 SEAT, VALVE SPRING 2
12 14781MA6000 COTTER, VALVE 4
13 90002KRM840 BOLT, FLANGE, 5X14 2
14 90012KWW740 SCREW, TAPPET ADJUSTING 2
15 90206KPL900 NUT, TAPPET ADJUSTING 2
16 14452K68900 SHAFT, EX. ROCKER ARM 1
