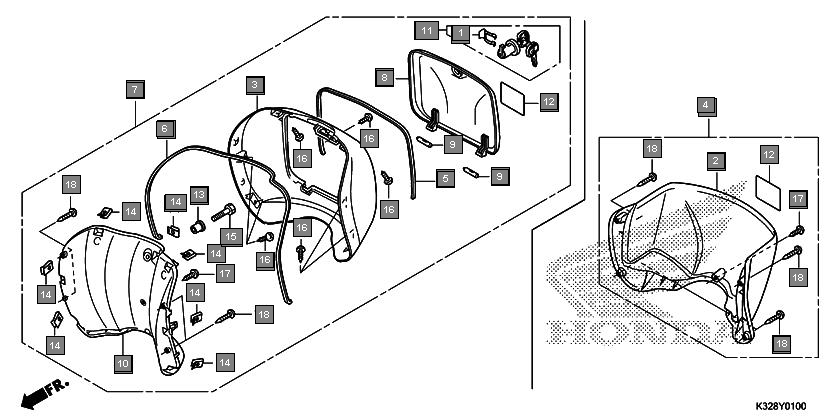

Scooters Activa i SCV110HE Frame Inner box/inner rack
Ref.No. Part No. Description Oty
1 75581KPL900 SPRING, LOCK KEY SETTING 1
2 81132K32900 RACK, INNER 1
3 81134K32900 OUTER, INNER BOX 1
4 81135K32900 RACK SET, INNER 1
5 81137KWP900 SEAL, INNER BOX 1
6 81138K32900 SEAL, OUTER INNER 1
7 81140K32900 BOX SET, INNER 1
8 81141K32900 LID, INNER BOX 1
9 81143GC8000 PIN, INNER BOX LID 2
10 81145K32900 INNER, INNER BOX 1
11 81145KPL900 KEY SET, INNER BOX 1
12 87505KZK900 LABEL, TIRE 1
13 90312K32900 COLLAR, 6X22 1
14 90344KRP900 NUT, CLIP, 5MM 7
15 92101060350H BOLT, HEX., 6X35 1
16 9390325280 SCREW, TAPPING, 5X12 7
17 9390325380 SCREW, TAPPING, 5X16 1
18 9390325580 SCREW, TAPPING, 5X25 4
