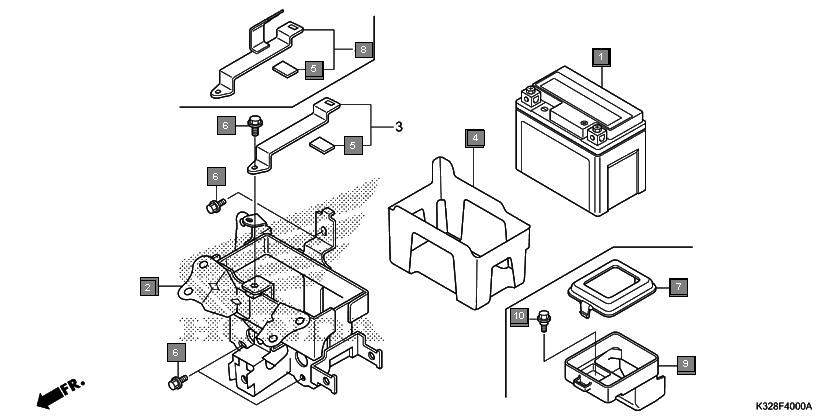

Scooters Activa i SCV110HE Frame Battery
Ref.No. Part No. Description Oty
1 31500KVT801 BATTERY ASSY.(ETZ4-BS)(EXIDE) 1
2 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
3 50330K32901 BOX COMP., BATTERY 1
4 50341KWPD00 BAND COMP., BATTERY 1
5 50381KWPD00 CASE, BATTERY 1
6 50386KWPD00 RUBBER A, BATTERY 1
7 957020601208 BOLT, FLANGE, 6X12 4
8 957010601208 BOLT, FLANGE, 6X12 4
