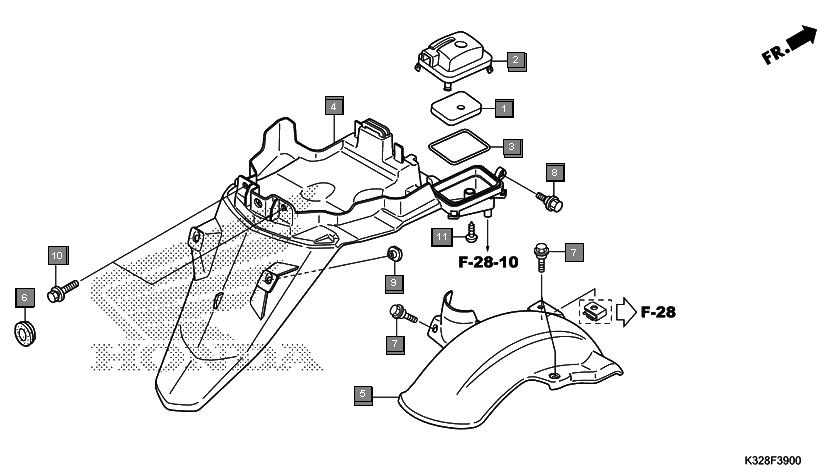

Scooters Activa i SCV110HE Frame Rear fender
Ref.No. Part No. Description Oty
1 18805KPL900 ELEMENT, SUB AIR CLEANER 1
2 18807KPL900 COVER, SUB AIR CLEANER 1
3 18812KPL900 SEAL, SUB AIR CLEANER 1
4 80105K32900 FENDER, RR. 1
5 80107K32900 FENDER, RR. INNER 1
6 83551GE2000 GROMMET, AIR CLEANER CASE 1
7 90111187000 BOLT, FLANGE, 6MM 3
8 90111KWP900 BOLT, INNER COVER 1
9 90311KTE910 NUT, RR. FENDER 2
10 934040601208 BOLT-WASHER, 6X12 2
11 9390325480 SCREW, TAPPING, 5X20 1
