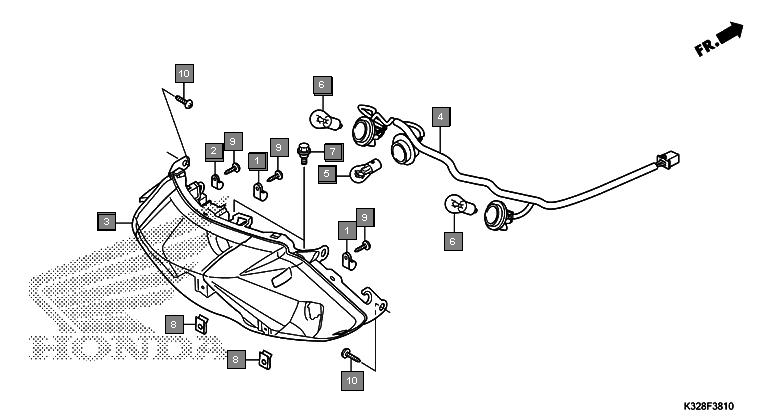

Scooters Activa i SCV110HE Frame Rear combination light
Ref.No. Part No. Description Oty
1 32920KVT901 CLIP A, HARNESS 2
2 32930KVT901 CLIP B, HARNESS 1
3 33711K32901 BASE COMP., RR. 1
4 33715K32901 SOCKET COMP. 1
5 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
6 34930KWA930 BULB, WINKER(12V 10W)(AMBER) 2
7 90111KWP900 BOLT, INNER COVER 2
8 90344KTE910 NUT, CLIP, 4MM 2
9 9390124410 SCREW, TAPPING, 4X16 3
10 9390335280 SCREW, TAPPING, 5X12 4
