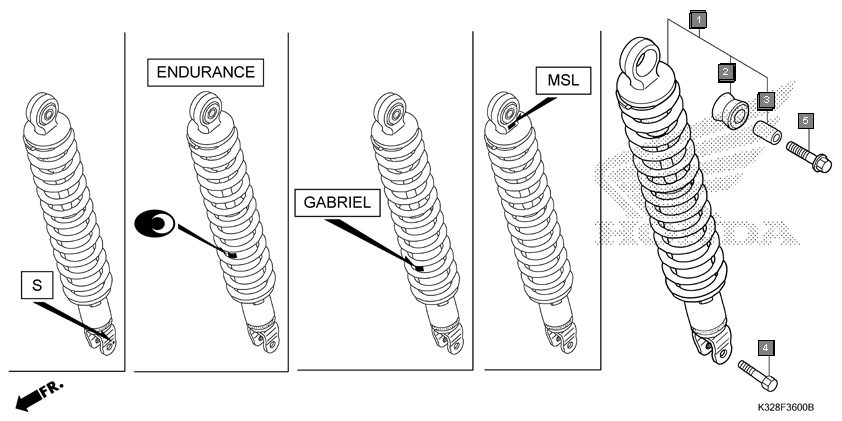

Scooters Activa i SCV110HE Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KWP902 CUSHION ASSY., RR.(GABRIEL) 1
2 52400KWP901 CUSHION ASSY., RR.(SHOWA)(MSL) 1
3 52485088901 BUSH, RR. CUSHION RUBBER(SHOWA) 1
4 52485KPL902 BUSH, RUBBER(GABRIEL) 1
5 52487KPL903 COLLAR, RUBBER BUSH(GABRIEL) 1
6 52486GA7003 COLLAR, RUBBER BUSH(SHOWA)(MSL) 1
7 92201080320A BOLT, HEX., 8X32 1
8 958021003500 BOLT, FLANGE, 10X35 1
9 958011003500 BOLT, FLANGE, 10X35 1
