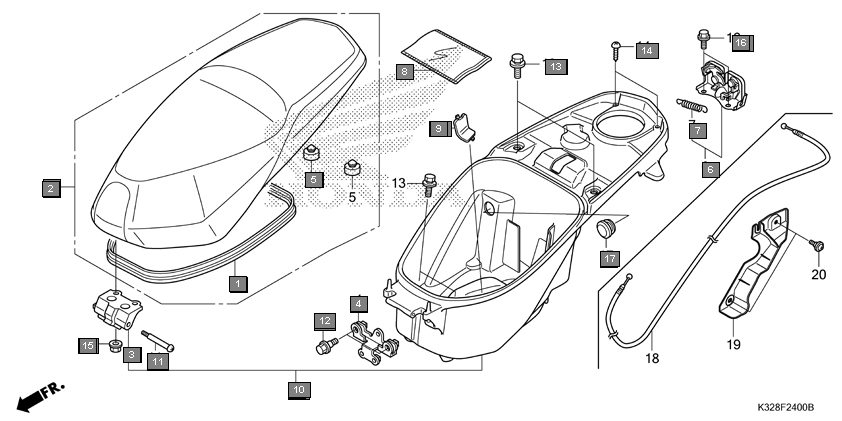

Scooters Activa i SCV110HE Frame Seat/luggage box
Ref.No. Part No. Description Oty
1 77115KZK900 RUBBER, SEAL 1
2 77200K32901ZA SEAT COMP., DOUBLE *TYPE1* 1
3 77201KWP900 HINGE, SEAT 1
4 77203KWP900 STAY, HOOK LUGGAGE 1
5 77206KG8900 RUBBER, SEAT SETTING 2
6 77235KWP900 CATCH COMP., SEAT 1
7 77236GBL000 SPRING, SEAT CATCH 1
8 77251KPL900 BAG, SERVICE BOOK 1
9 81255KZK900 COVER, CARBURETOR MAINTENANCE 1
10 81260K32900 BOX ASSY., LUGGAGE 1
11 90105KTP900 PIN, HINGE 1
12 90112KRP900 BOLT, FLANGE, 6X18 2
13 934040601207 BOLT-WASHER, 6X12 4
14 9390334480 SCREW, TAPPING, 4X16 2
15 9405006000 NUT, FLANGE, 6MM 2
16 957010601208 BOLT, FLANGE, 6X12 2
17 957020601208 BOLT, FLANGE, 6X12 2
