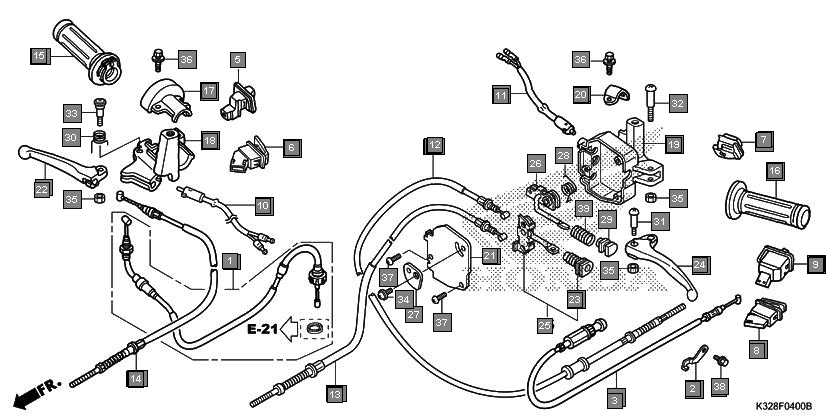

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06179KZK901 | CABLE SET, THROTTLE | 1 |
| 2 | 11233KZK900 | CLAMP, BRAKE CABLE | 1 |
| 3 | 17950KWP900 | CABLE COMP., CHOKE | 1 |
| 4 | 35150KZK901 | SWITCH UNIT, LIGHTING(JAY USHIN) | 1 |
| 5 | 35160KWP901 | SWITCH UNIT, STARTER | 1 |
| 6 | 35170KPL842 | SWITCH UNIT, DIMMER(JAY USHIN) | 1 |
| 7 | 35170KPL901 | SWITCH UNIT, DIMMER(MINDA) | 1 |
| 8 | 35180KWP901 | SWITCH UNIT, HORN | 1 |
| 9 | 35200KWP901 | SWITCH UNIT, WINKER(MINDA) | 1 |
| 10 | 35200KVT911 | SWITCH UNIT, WINKER(JAY USHIN) | 1 |
| 11 | 35340KWP900 | SWITCH ASSY., FR. STOP | 1 |
| 12 | 35340KWP911 | SWITCH ASSY., FR. STOP | 1 |
| 13 | 43450K32901 | CABLE COMP., RR. BRAKE | 1 |
| 14 | 45440K32901 | CABLE COMP., L. FR. BRAKE | 1 |
| 15 | 45450KWP910 | CABLE COMP., R. FR. BRAKE | 1 |
| 16 | 53146KRB901 | GRIP COMP., THROTTLE | 1 |
| 17 | 53166KPL901 | GRIP, L. HANDLE | 1 |
| 18 | 53167KPL900 | HOUSING, UPPER THROTTLE | 1 |
| 19 | 53168KWP900 | HOUSING, UNDER THROTTLE | 1 |
| 20 | 53172KWP910 | BRACKET, L. BRAKE LEVER | 1 |
| 21 | 53173KPL900 | BAND, HANDLE BRACKET | 1 |
| 22 | 53173KWP910 | COVER, L. BRAKE LEVER BRACKET | 1 |
| 23 | 53175KZN910 | LEVER, R. STEERING HANDLE | 1 |
| 24 | 53176GBL870 | BOOT, BRAKE LEVER ROD | 1 |
| 25 | 53178KWP910 | LEVER, L. STEERING HANDLE | 1 |
| 26 | 53180KWP910 | EQUALIZER COMP. | 1 |
| 27 | 53185KWP910 | ARM COMP., RR. BRAKE LOCK | 1 |
| 28 | 53186GBL870 | COVER, RR. BRAKE LOCK LEVER | 1 |
| 29 | 53186KWP910 | SPRING, BRAKE LOCK ARM RETURN | 1 |
| 30 | 53189KWP910 | STOPPER, EQUALIZER | 1 |
| 31 | 53199KZN910 | SPRING, BRAKE LEVER RETURN | 1 |
| 32 | 90115KPL900 | SCREW, HANDLE LEVER PIVOT | 1 |
| 33 | 90115KRP980 | SCREW, HANDLE LEVER PIVOT | 1 |
| 34 | 90115KZN910 | SCREW, HANDLE LEVER PIVOT | 1 |
| 35 | 90118KWP910 | SCREW, PAN, 5X13 | 1 |
| 36 | 90304KPL900 | NUT, HEX., 5MM | 3 |
| 37 | 934010602000 | BOLT-WASHER, 6X20 | 2 |
| 38 | 93500050121H | SCREW, PAN, 5X12 | 2 |
| 39 | 960010601000 | BOLT, FLANGE, 6X10 | 1 |
