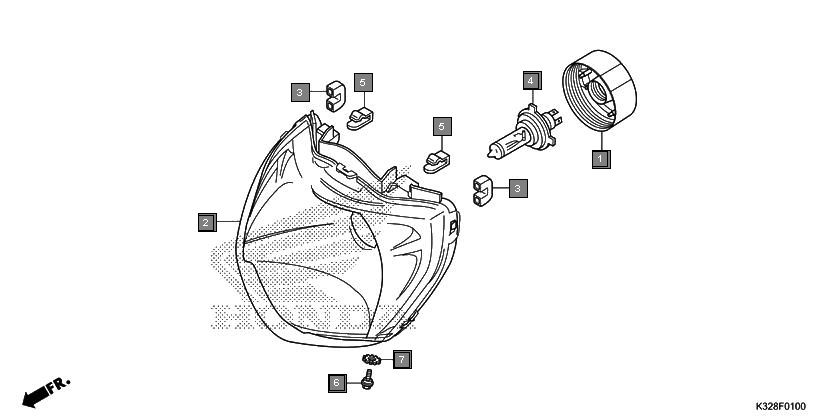

Scooters Activa i SCV110HE Frame Headlight
Ref.No. Part No. Description Oty
1 33112K32901 COVER, RUBBER 1
2 33120K32901 HEADLIGHT UNIT 1
3 33706KWS901 TUBE 2
4 34901KSP910 BULB, HEADLIGHT(HS1)(12V 35/35W)(PHILIPS) 1
5 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
6 53209GAH000 CLIP, HEADLIGHT 2
7 90103KVH900 BOLT, ADJUSTER 1
8 90307GW3980 WASHER, LOCK, 6MM 1
