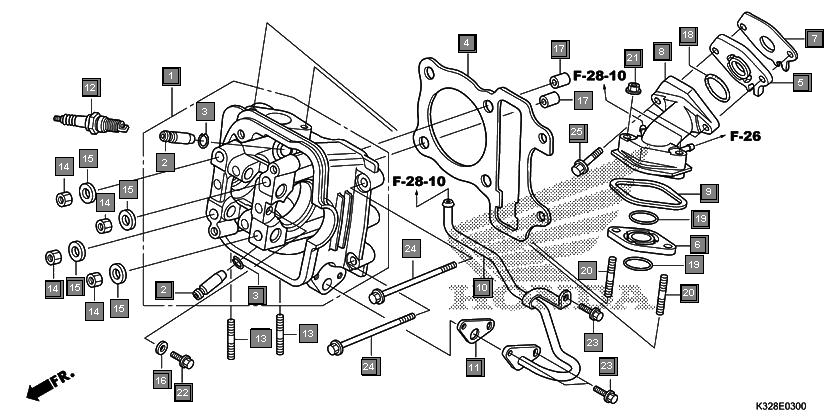

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 12200KWPD00 | HEAD COMP., CYLINDER | 1 |
| 2 | 12204KWPP00 | GUIDE, VALVE(O.S.) | 2 |
| 3 | 12206KPL900 | CLIP, VALVE GUIDE | 2 |
| 4 | 12251KWPD01 | GASKET, CYLINDER HEAD(STD/0.25/0.50) | 1 |
| 5 | 12252KWPD00 | GASKET, CYLINDER HEAD(0.75/1.00) | 1 |
| 6 | 16211KWP900 | INSULATOR A, CARBURETOR | 1 |
| 7 | 16212KWP900 | INSULATOR B, CARBURETOR | 1 |
| 8 | 16229KRP601 | GASKET A, CARBURETOR INSULATOR | 1 |
| 9 | 17110KWPD00 | PIPE COMP., IN. | 1 |
| 10 | 17113KWP900 | RUBBER, IN. PIPE SEAL | 1 |
| 11 | 18640KWPD00 | PIPE COMP., AIR FEED | 1 |
| 12 | 18645KVY900 | GASKET, AIR FEED PIPE | 1 |
| 13 | 31917KWPD01 | PLUG, SPARK(MR7C-9N)(NGK) | 1 |
| 14 | 90004KGF910 | BOLT, STUD, 7X17 | 2 |
| 15 | 90201GCC000 | NUT, HEX., 7MM | 4 |
| 16 | 90401GCC000 | WASHER, 7.2X16X2.5 | 4 |
| 17 | 90402KWP900 | WASHER, 6MM | 1 |
| 18 | 90701KPL900 | DOWEL PIN, SPECIAL, 8X14 | 2 |
| 19 | 91304KWP900 | O-RING, 25X2.4 | 1 |
| 20 | 91308GFM900 | O-RING, 25.5X1.9 | 2 |
| 21 | 92900060350B | BOLT, STUD, 6X35 | 2 |
| 22 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 23 | 957020601400 | BOLT, FLANGE, 6X14 | 1 |
| 24 | 957010601400 | BOLT, FLANGE, 6X14 | 1 |
| 25 | 957020601800 | BOLT, FLANGE, 6X18 | 3 |
| 26 | 957010601800 | BOLT, FLANGE, 6X18 | 3 |
| 27 | 957010610000 | BOLT, FLANGE, 6X100 | 2 |
| 28 | 957020610000 | BOLT, FLANGE, 6X100 | 2 |
| 29 | 960010602800 | BOLT, FLANGE, 6X28 | 2 |
