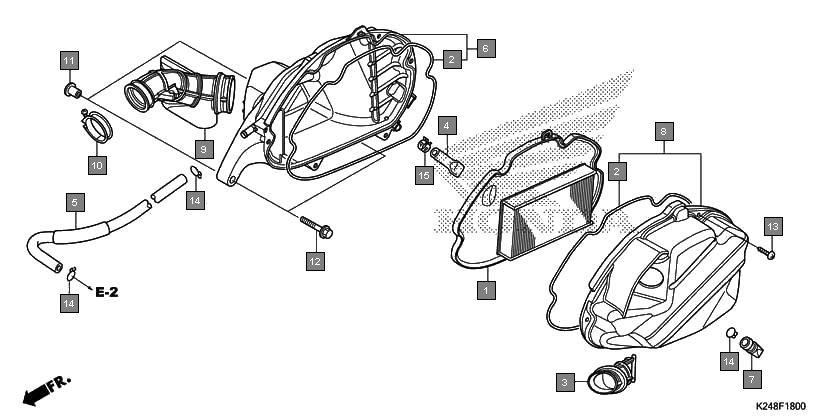

Scooters Activa125 SCV125G Frame Air cleaner
Ref.No. Part No. Description Oty
1 17210K24900 ELEMENT COMP., AIR CLEANER 1
2 17213K24900 SEAL, AIR CLEANER 2
3 17215K24900 DUCT, AIR CLEANER 1
4 17216KTP900 TUBE, DRAIN 1
5 17218K24900 TUBE, BREATHER 1
6 17225K24900 CASE SUB ASSY., AIR CLEANER 1
7 17234KCW871 TUBE, AIR CLEANER DRAIN 1
8 17245K24900 COVER SUB ASSY., AIR CLEANER 1
9 17253K24900 TUBE, AIR CLEANER CONNECTING 1
10 17254KWPD00 BAND, AIR CLEANER CONNECTINGTUBE(40) 1
11 50731KV3770 COLLAR, PILLION STEP SETTING 2
12 934040604007 BOLT-WASHER, 6X40 2
13 9390325480 SCREW, TAPPING, 5X20 6
14 9500202130 CLIP, TUBE(B12.5) 3
15 950024120008 CLAMP, TUBE(D12) 1
