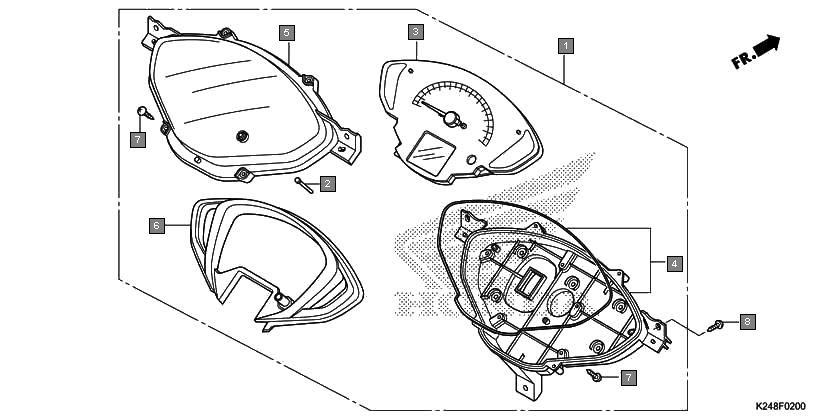

Scooters Activa125 SCV125E Frame Meter
Ref.No. Part No. Description Oty
1 37200K24901 SPEEDOMETER ASSY.(KPH) 1
2 37202K24901 ROD, SWITCH EXTENSION 1
3 37210K24901 SPEEDOMETER ASSY. 1
4 37212K24901 CASE ASSY., UNDER 1
5 37213K24901 LENS ASSY. 1
6 37302K24901 REFLECTOR ASSY. 1
7 9390322480 SCREW, TAPPING, 3X16 10
8 9390325380 SCREW, TAPPING, 5X16 3
