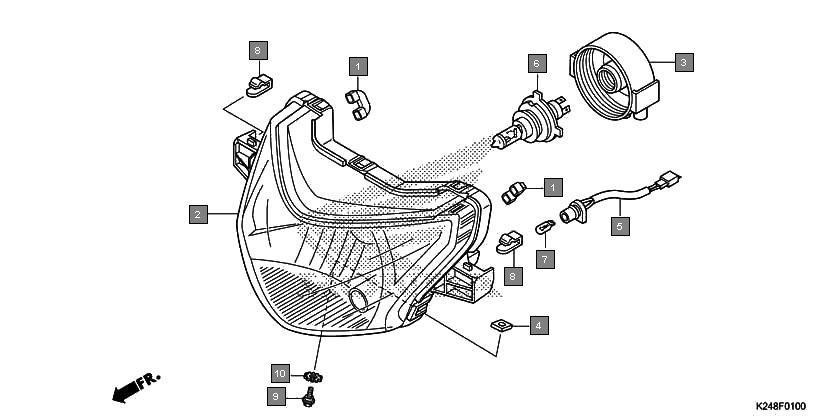

Scooters Activa125 SCV125E Frame Headlight
Ref.No. Part No. Description Oty
1 33101KVN901 TUBE 2
2 33110K24901 HEADLIGHT UNIT 1
3 33126KTP890 COVER, RUBBER 1
4 33128GBL003 NUT, SPECIAL 1
5 33150K24901 SOCKET ASSY., POSITION LIGHT 1
6 34901KTE740 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHILIPS) 1
7 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
8 34903KRP980 BULB, POSITION LIGHT(12V 5W) 1
9 53209GAH000 CLIP, HEADLIGHT 2
10 90103KVH900 BOLT, ADJUSTER 1
11 90307GW3980 WASHER, LOCK, 6MM 1
