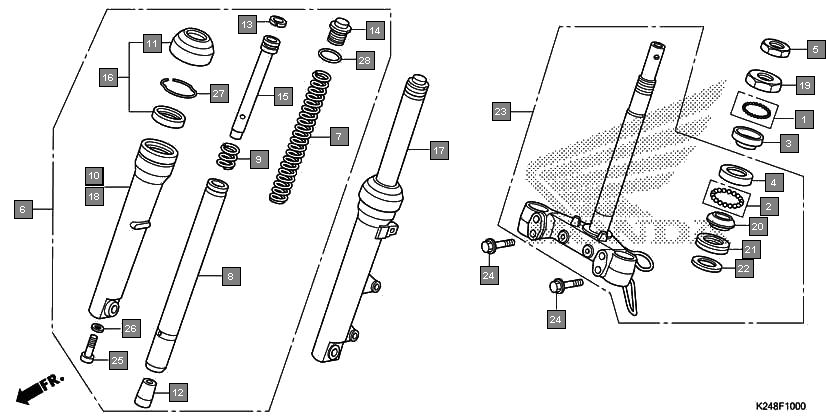

Scooters Activa125 SCV125E Frame Front fork
Ref.No. Part No. Description Oty
1 06530KEMP00 BALL SET, STEEL, #5X26 1
2 06531KEMP00 BALL SET, STEEL, #8X19 1
3 50301KEM900 RACE, STEERING UPPER BALL 1
4 50302268010 RACE, STEERING BOTTOM BALL 1
5 50306KPL900 NUT, STEERING STEM LOCK 1
6 51400K24911 FORK ASSY., R. FR. 1
7 51400K24901 FORK ASSY., R. FR. 1
8 51401KVT911 SPRING, FR. FORK 2
9 51410K24911 PIPE COMP., FR. FORK 2
10 51420KVTF01 CASE, R. FR. BOTTOM 1
11 51412KSP901 SPRING, REBOUND 2
12 51420KVT961 CASE, R. FR. BOTTOM 1
13 51420KVT901 CASE, R. FR. BOTTOM 1
14 51425KST901 SEAL, DUST 2
15 51432KFN851 PIECE, OIL LOCK 2
16 51437KVN901 RING, PISTON 2
17 51454K24911 BOLT, FR. FORK 2
18 51470KVT911 PIPE, SEAT 2
19 51490KWA941 SEAL SET, FR. FORK 2
20 51500K24911 FORK ASSY., L. FR. 1
21 51500K24901 FORK ASSY., L. FR. 1
22 51520KVT961 CASE, L. FR. BOTTOM 1
23 51520K24901 CASE, L. FR. BOTTOM 1
24 53211KEM900 RACE, STEERING TOP CONE 1
25 53212250010 RACE, STEERING BOTTOM CONE 1
26 53214250000 DUST SEAL, STEERING HEAD 1
27 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
28 53219K24910 STEM SUB ASSY., STEERING 1
29 53219K24900 STEM SUB ASSY., STEERING 1
30 90101KVTD00 BOLT, FLANGE, 10X42 4
31 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
32 90544439930 PACKING(SHOWA) 2
33 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
34 91356KAG901 O-RING(SHOWA) 2
