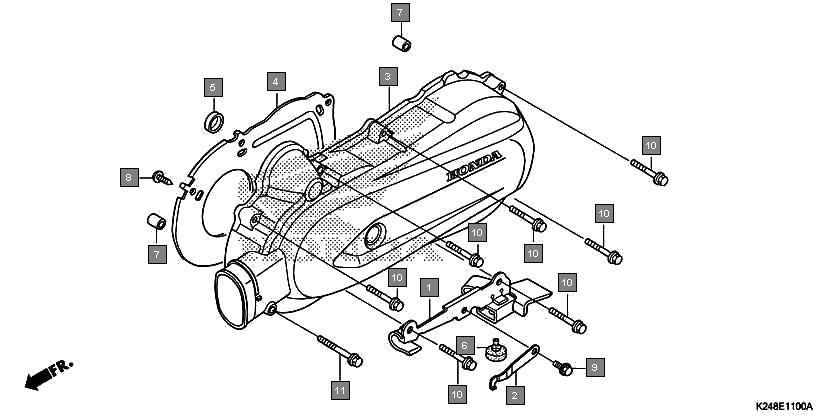

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11230K24901 | CLAMPER COMP., RR. BRAKE CABLE | 1 |
2 | 11233K24900 | CLAMP, BRAKE CABLE | 1 |
3 | 11341K24900 | COVER, L. SIDE | 1 |
4 | 11342KWPD00 | PLATE, L. COVER | 1 |
5 | 11344GW3980 | RUBBER, STARTER PINION HOLDER | 1 |
6 | 50501KPL900 | STOPPER, RUBBER | 1 |
7 | 90701KPL900 | DOWEL PIN, SPECIAL, 8X14 | 2 |
8 | 9390334120 | SCREW, TAPPING, 4X8 | 5 |
9 | 960010601000 | BOLT, FLANGE, 6X10 | 1 |
10 | 960010603500 | BOLT, FLANGE, 6X35 | 7 |
11 | 960010607500 | BOLT, FLANGE, 6X75 | 1 |
