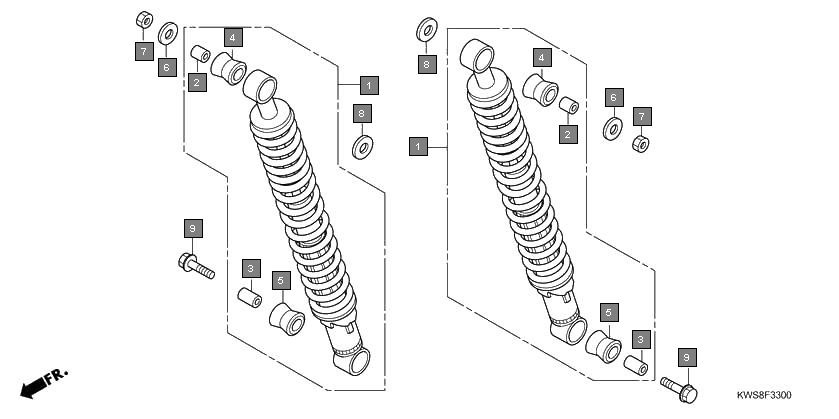

Motorcycles CB Twister CBF110ME Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KWS901 CUSHION ASSY., RR. 2
2 52486KWS901 COLLAR, RUBBER BUSH(GABRIEL) 2
3 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 2
4 52489KWS901 BUSH, RUBBER(GABRIEL) 2
5 52495KWS901 BUSH, RUBBER 2
6 90551KTE910 WASHER, SPECIAL, 10MM 2
7 9403010000 NUT, HEX., 10MM 2
8 9410112000 WASHER, PLAIN, 12MM 2
9 958011003500 BOLT, FLANGE, 10X35 2
10 958021003500 BOLT, FLANGE, 10X35 2
