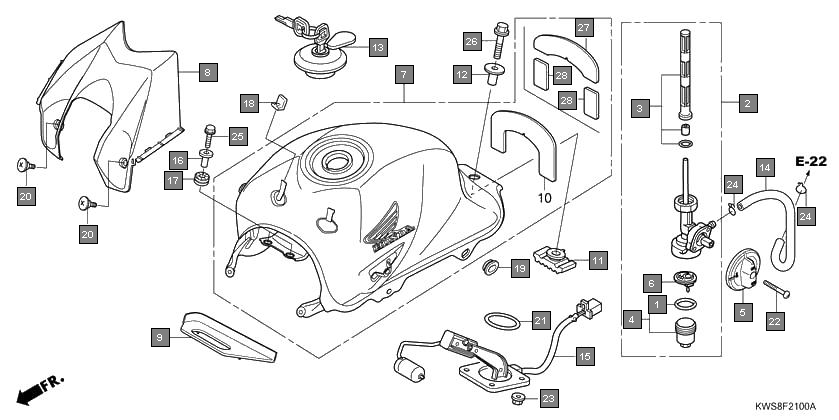

Motorcycles CB Twister CBF110ME Frame Fuel tank
Ref.No. Part No. Description Oty
1 16173001004 PACKING, FUEL STRAINER CUP 1
2 16950KWS901 COCK ASSY., FUEL 1
3 16952KWS901 SCREEN SET, FUEL STRAINER 1
4 16953GT4305 CUP SET, FUEL STRAINER 1
5 16955KWS900 LEVER, FUEL COCK 1
6 16959HB3005 FILTER, CUP 1
7 17500KWSB00ZB TANK ASSY., FUEL(WL) *TYPE3* 1
8 17500KWSB00ZC TANK ASSY., FUEL(WL) *TYPE2* 1
9 17500KWSB00ZD TANK ASSY., FUEL(WL) *TYPE1* 1
10 17500KWSB00ZA TANK ASSY., FUEL(WL) *TYPE4* 1
11 17520KWS900ZK COVER, TANK *Y210M* ELECTRIC YELLOW METALLIC 1
12 17500KWSB00ZE TANK ASSY., FUEL(WL)*TYPE4* 1
13 17500KWSB00ZF TANK ASSY., FUEL(WL)*TYPE3* 1
14 17500KWSB00ZG TANK ASSY., FUEL(WL)*TYPE2* 1
15 17500KWSB00ZH TANK ASSY., FUEL(WL)*TYPE1* 1
16 17520KWS900ZF COVER, TANK *NH1* BLACK 1
17 17520KWS900ZQ COVER, TANK *NH194MU* HEAVY GRAY METALLIC-U 1
18 17520KWS900ZS COVER, TANK *R321* SPORTS RED 1
19 17521KWS900 TRAY, FUEL 1
20 17613KWS900 RUBBER, FUEL TANK RR. 1
21 17614KR3000 COLLAR, FUEL TANK MOUNTING 1
22 17620KWS901 CAP COMP., FUEL FILLER 1
23 17681KWS900 TUBE, FUEL 1
24 37800KWS901 FUEL UNIT 1
25 61104422000 COLLAR, SETTING 2
26 77208KW7900 RUBBER B, SEAT MOUNTING 2
27 83502KCC900 GROMMET, SIDE COVER 2
28 83551300000 GROMMET, AIR CLEANER CASE 2
29 90107KW7900 BOLT, FAIRING SETTING 2
30 91305443740 O-RING, 39.5X5 1
31 93500040400G SCREW, PAN, 4X40 1
32 9405006000 NUT, FLANGE, 6MM 4
33 9500202100 CLIP, TUBE(B10) 2
34 960010602200 BOLT, FLANGE, 6X22 2
35 957010802800 BOLT, FLANGE, 8X28 1
36 957020802800 BOLT, FLANGE, 8X28 1
37 17526KWS600 FILM, TANK PROTECTOR 1
38 17527KWS600 FILM, TANK SIDE PROTECTOR 2
