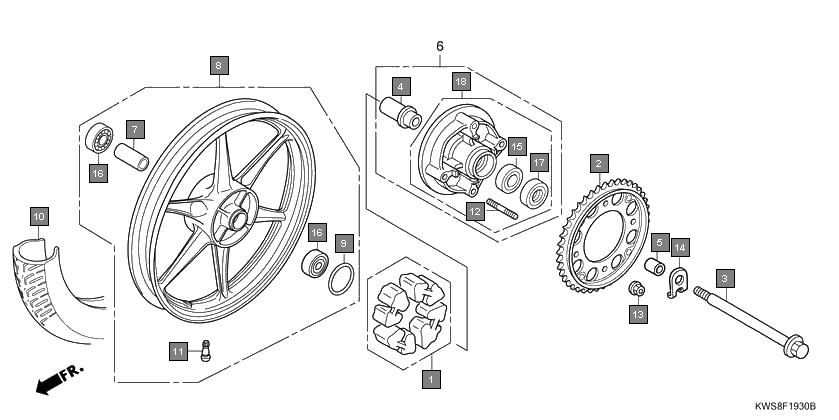

Motorcycles CB Twister CBF110ME Frame Rear wheel
Ref.No. Part No. Description Oty
1 06410KWS901 DAMPER SET, WHEEL 1
2 41200KWF950 SPROCKET COMP., FINAL DRIVEN (42T) 1
3 42301KWS900 AXLE, RR. WHEEL 1
4 42303KWF950 SLEEVE, RR. WHEEL 1
5 42304KWS900 COLLAR, RR. AXLE SLEEVE 1
6 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
7 42650KWSB00 WHEEL SUB ASSY., RR. 1
8 42653001004 O-RING, 40.5X3 (NIPPON DUST KEEPER) 1
9 42711KWS901 TIRE, RR.(TVS) (80/100-17 M/C 53P) 1
10 42711KWS902 TIRE, RR.(MRF) (80/100-17 M/C 53P) 1
11 42753KWF901 VALVE, RIM(TRITON) 1
12 90128KTE910 BOLT, STUD, 8X20 4
13 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
14 90558KTR900 WASHER, RR. AXLE 1
15 91051KWF901 BEARING, RADIAL BALL, 6203UU(NSK) 1
16 91051K23902 BEARING, RADIAL BALL, 6203UU(SKF) 1
17 91051K23904 BEARING, RADIAL BALL, 6203UU(FAG) 1
18 91081KYJ711 BEARING, RADIAL BALL, 6203UU (NEI) 1
19 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
20 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
21 91052K23905 BEARING, RADIAL BALL, 6301U (JTEKT) 2
22 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
23 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
24 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
25 42615KWSB00ZA FLANGE SUB ASSY., FINAL DRIVEN *NH303M* MAT AXIS GRAY METALLIC 1
