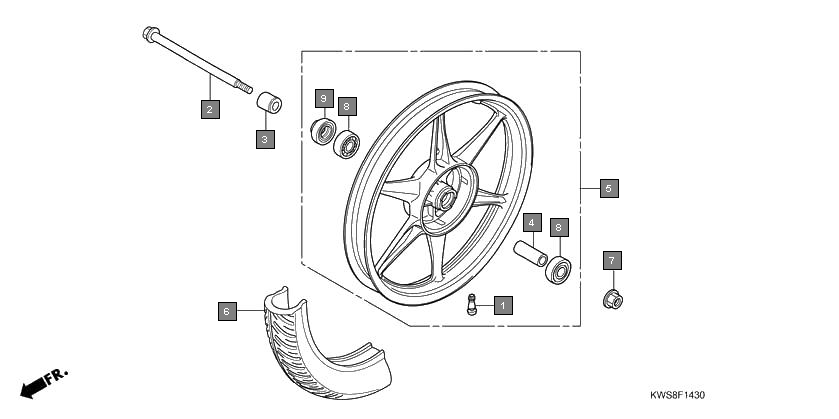

Motorcycles CB Twister CBF110ME Frame Front wheel(drum brake)
Ref.No. Part No. Description Oty
1 42753KWF901 VALVE, RIM(TRITON) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
5 44650KWSB00 WHEEL SUB ASSY., FR. 1
6 44711KWS901 TIRE, FR.(TVS) (70/100-17 M/C 40P) 1
7 44711KWS902 TIRE, FR.(MRF) (70/100-17 M/C 40P) 1
8 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
9 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
10 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
11 91052K23903 BEARING, RADIAL BALL, 6301U (NEI) 2
12 91052K23905 BEARING, RADIAL BALL, 6301U (JTEKT) 2
13 91052KWWA81 BEARING, RADIAL BALL, 6301U (SKF) 2
14 91053KWW642 BEARING, RADIAL BALL, 6301U (FAG) 2
15 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
