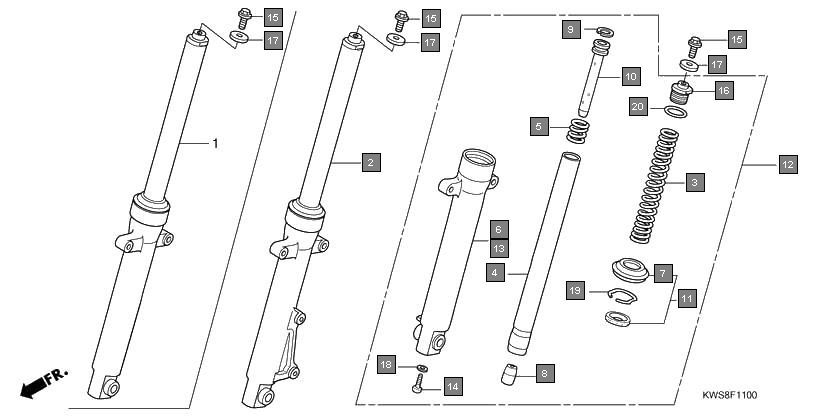

Motorcycles CB Twister CBF110ME Frame Front fork
Ref.No. Part No. Description Oty
1 51400KWSB01 FORK ASSY., R. FR. 1
2 51400KWSB21 FORK ASSY., R. FR. 1
3 51401KWS901 SPRING, FR. FORK 2
4 51410KWS901 PIPE COMP., FR. FORK 2
5 51412KAG901 SPRING, REBOUND(SHOWA) 2
6 51420KWSB01 CASE, R. FR. BOTTOM 1
7 51420KWSB21 CASE, R. FR. BOTTOM 1
8 51425961013 DUST SEAL(SHOWA) 2
9 51432KST901 PIECE, OIL LOCK 2
10 51437KVN901 RING, PISTON 2
11 51440KWS901 PIPE, SEAT 2
12 51490KWS901 SEAL SET, FR. FORK 2
13 51500KWSB01 FORK ASSY., L. FR. 1
14 51500KWSB21 FORK ASSY., L. FR. 1
15 51520KWSB01 CASE, L. FR. BOTTOM 1
16 51520KWSB21 CASE, L. FR. BOTTOM 1
17 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
18 90123KRM860 BOLT, FR. FORK 2
19 90123KSP901 BOLT A, FR. FORK 2
20 90521KSP900 WASHER, 10.3MM 2
21 90544439930 PACKING(SHOWA) 2
22 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
23 91356KAG901 O-RING(SHOWA) 2
