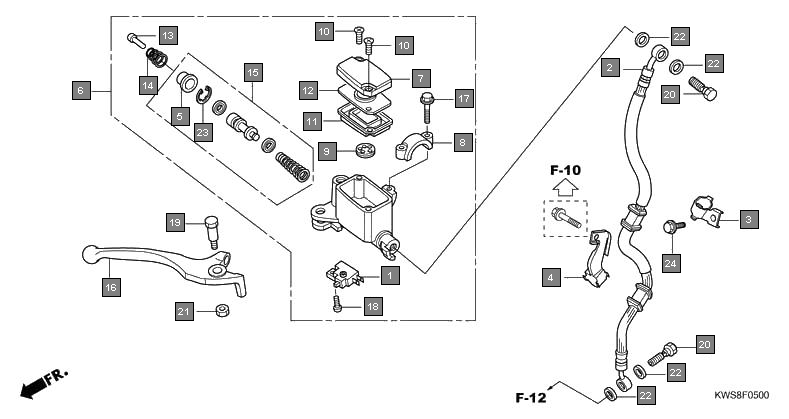

Motorcycles CB Twister CBF110ME Frame Front brake master cylinder
Ref.No. Part No. Description Oty
1 35340KCK900 SWITCH ASSY., FR. STOP 1
2 45126KWS923 HOSE COMP., FR. BRAKE 1
3 45126KWSB21 HOSE COMP., FR. BRAKE 1
4 45155KWS920 CLAMPER A, FR. BRAKE HOSE 1
5 45156KSP900 CLAMPER B, FR. BRAKE HOSE 1
6 45504KCC841 BOOT COMP. 1
7 45510KVT911 CYLINDER SUB ASSY., FR. BRAKE MASTER 1
8 45513KCC841 CAP, MASTER CYLINDER 1
9 45517KCC841 HOLDER, MASTER CYLINDER 1
10 45518KCC841 SEPARATOR COMP. 1
11 45519KCC841 SCREW, FLAT 2
12 45520KCC841 DIAPHRAGM 1
13 45521KCC841 PLATE, DIAPHRAGM 1
14 45525KCC841 ROD, PUSH 1
15 45526KCC841 SPRING, PUSH ROD 1
16 45530KCC841 CYLINDER SET, MASTER 1
17 53175KSP900 LEVER, R. STEERING HANDLE 1
18 90111KCC841 BOLT, FLANGE, 6X25 2
19 90112KCC841 SCREW, PAN, 4X8 1
20 90114KCC841 BOLT, HANDLE LEVER 1
21 90145GW3981 BOLT, OIL, 10X22 2
22 90303KCC841 NUT 1
23 90545300000 WASHER, OIL BOLT 4
24 90651KCC841 CIRCLIP 1
25 960010601200 BOLT, FLANGE, 6X12 1
