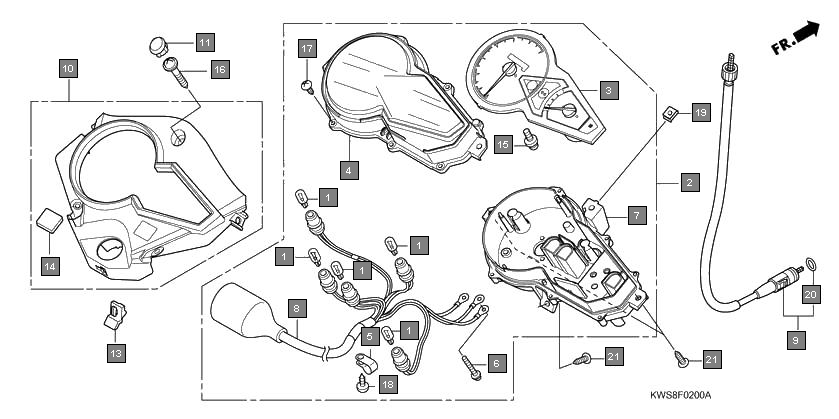

Motorcycles CB Twister CBF110ME Frame Meter
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37200KWS901 SPEEDOMETER ASSY. 1
3 37210KWS901 SPEEDOMETER COMP. 1
4 37211KWS901 LENS 1
5 37215KS3901 CLAMP 1
6 37305KE5008 SCREW-WASHER, 3X22 3
7 37610KWS901 CASE ASSY., UNDER 1
8 37619KWS901 SOCKET COMP. 1
9 44830KWS601 CABLE COMP., SPEEDOMETER 1
10 61310KWS600 COVER ASSY., METER 1
11 61313KWS900 PLUG, BLIND 1
12 61318KWS900 RUBBER, METER COVER 1
13 86150KWS601 EMBLEM, PRODUCT(SJS) 1
14 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
15 90101KWS900 SCREW, PAN, 5X28 1
16 90101KY6008 SCREW, TAPPING, 3X14 5
17 90109MZ5008 SCREW, TAPPING, 4X14 1
18 90320GC3000 NUT, SPRING, 5MM 1
19 91352671003 O-RING, 8.5X1.5(ARAI) 1
20 91352671004 O-RING, 8.5X1.5(NOK) 1
21 9390335310 SCREW, TAPPING, 5X16 3
