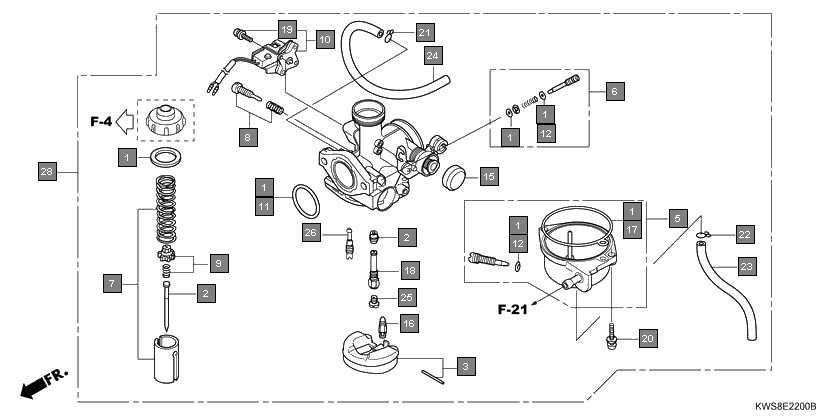

Motorcycles CB Twister CBF110ME Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KWS901 GASKET SET 1
2 16027KWSB01 NEEDLE SET, JET 1
3 16013KRB901 FLOAT SET 1
4 16015KWS901 CHAMBER SET, FLOAT 1
5 16016KPH901 SCREW SET 1
6 16022KWS901 VALVE SET, THROTTLE 1
7 16028KWS901 SCREW SET 1
8 16037KPH901 PLATE SET, VALVE 1
9 16060KWS901 SWITCH ASSY., THROTTLE 1
10 16075KTC901 O-RING 1
11 16076KPL901 O-RING 2
12 16148KPL901 CAP, CHOKE DUST 1
13 16155KRS861 VALVE COMP., FLOAT 1
14 16163KWS901 GASKET, FLOAT CHAMBER 1
15 16165KWS901 HOLDER, NEEDLE JET 1
16 938920401010 SCREW-WASHER, 4X10 2
17 938920401808 SCREW-WASHER, 4X18 2
18 9500202089 CLIP, TUBE(B8) 1
19 9500202659 CLIP, TUBE(B6.5) 1
20 950053536050 TUBE, 3.5X360(95005-35001-50M) 1
21 99101KTT0980 JET, MAIN, #98 1
22 16199KWS902 TUBE, AIR VENT 1
23 99101KWS1020 JET, MAIN, #102 1
24 99103KWS0350 JET, SLOW, #35 1
25 16100KWSB01 CARBURETOR ASSY.(PB7EZ A) 1
26 16100KWSC01 CARBURETOR ASSY.(PB7WA A) 1
