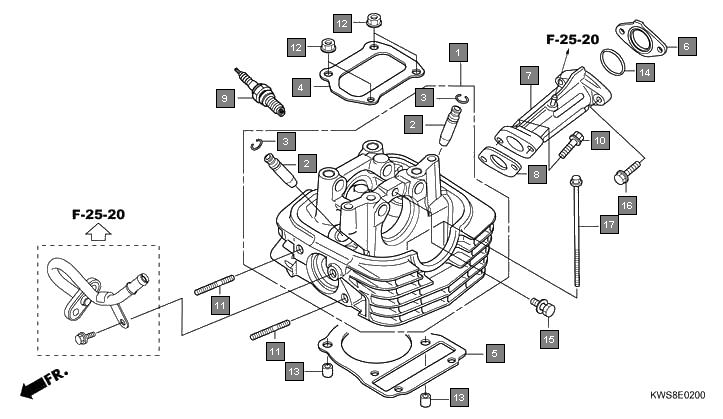

Motorcycles CB Twister CBF110ME Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200KWSB00 HEAD COMP., CYLINDER 1
2 12204KWPP00 GUIDE, VALVE(O.S.) 2
3 12206KPL900 CLIP, VALVE GUIDE 2
4 12212KWS900 PLATE, CYLINDER HEAD 1
5 12251KWS901 GASKET, CYLINDER HEAD 1
6 16211KTC900 INSULATOR, CARBURETOR 1
7 17110KWSB00 PIPE COMP., INLET 1
8 17112KWS901 GASKET, IN. PIPE 1
9 31917KPH901 PLUG, SPARK(CPR7EA-9)(NGK) 1
10 90001KWS900 BOLT, FLANGE, 6X28 2
11 90040KWS900 BOLT, STUD, 8X25 2
12 90202KWS900 NUT, FLANGE, 7MM 4
13 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
14 91304KPGT00 O-RING, 28X2.4 1
15 934040601200 BOLT-WASHER, 6X12 1
16 957010602500 BOLT, FLANGE, 6X25 2
17 957020602500 BOLT, FLANGE, 6X25 2
18 960010610000 BOLT, FLANGE, 6X100 2
