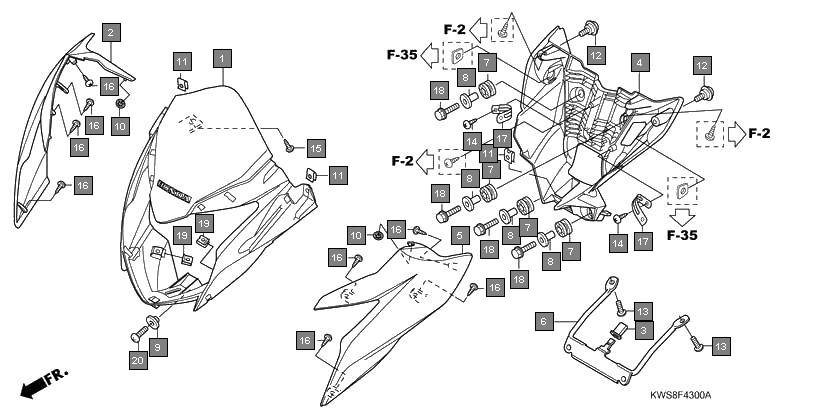

Motorcycles CB Twister CBF110MA Frame Front visor
Ref.No. Part No. Description Oty
1 61300KWS901ZA VISOR SET, FR.(WL) *TYPE1* 1
2 61302KWS900ZG GARNISH, R. *Y210M* ELECTRIC YELLOW METALLIC 1
3 61302KWS900ZD GARNISH, R. *GY142C* CANDY PALM GREEN 1
4 61302KWS900ZF GARNISH, R. *R320P* PEARL SIENA RED 1
5 61302KWS900ZC GARNISH, R. *B202P* PEARL FIJI BLUE 1
6 61302KWS900ZB GARNISH, R. *R344* RISING RED 1
7 61302KWS900ZA GARNISH, R. *NH1* BLACK 1
8 61302KWS900ZE GARNISH, R. *NHA84P* PEARL NIGHTSTAR BLACK 1
9 61304KWS900 RUBBER, NUMBER PLATE STAY 1
10 61312KWS900 COVER, HEADLIGHT RR. 1
11 61402KWS900ZG GARNISH, L. *Y210M* ELECTRIC YELLOW METALLIC 1
12 61402KWS900ZD GARNISH, L. *GY142C* CANDY PALM GREEN 1
13 61402KWS900ZF GARNISH, L. *R320P* PEARL SIENA RED 1
14 61402KWS900ZC GARNISH, L. *B202P* PEARL FIJI BLUE 1
15 61402KWS900ZB GARNISH, L. *R344* RISING RED 1
16 61402KWS900ZA GARNISH, L. *NH1* BLACK 1
17 61402KWS900ZE GARNISH, L. *NHA84P* PEARL NIGHTSTAR BLACK 1
18 64315KWS901 STAY, FR. NUMBER PLATE 1
19 64615KR1860 RUBBER, LOWER COWL MOUNTING 4
20 90310KWS900 COLLAR, FR. COWL 4
21 90311KWS900 COLLAR, FR. VISOR 1
22 90313172000 NUT, SPEED, 4MM 2
23 90320GC3000 NUT, SPRING, 5MM 3
24 91509GE2760 SCREW, PAN, 5X11.5 2
25 93500050120G SCREW, PAN, 5X12 2
26 9390124220 SCREW, TAPPING, 4X10 2
27 9390325220 SCREW, TAPPING, 5X12 1
28 9390334220 SCREW, TAPPING, 4X10 8
29 9459147000 CLIP, 4X70 2
30 960010602200 BOLT, FLANGE, 6X22 4
31 90320GC3000 NUT, SPRING, 5MM 2
32 93500050120G SCREW, PAN, 5X12 1
